- Perfect for 4G/5G/LTE & Broadcast implementations
- Full multi-band GNSS receiver <5ns accuracy to UTC 1.5us holdover within 24 hours State of the art Clock Gen with 4x Frequency outputs and 3x event time stampers
General Features
1x ANT: u.fl IPEX-1 connector for connecting GNSS antenna input.
4x PPS OUT: u.fl IPEX-1 connectors
1x PPS IN : u.fl IPEX-1 connector
3 x EVENT IN/OUT : u.fl IPEX-1 connectors

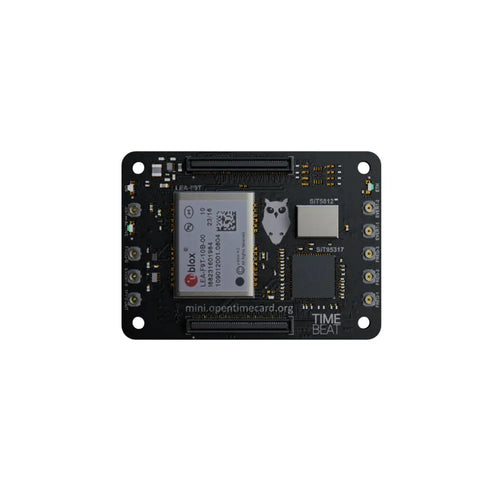

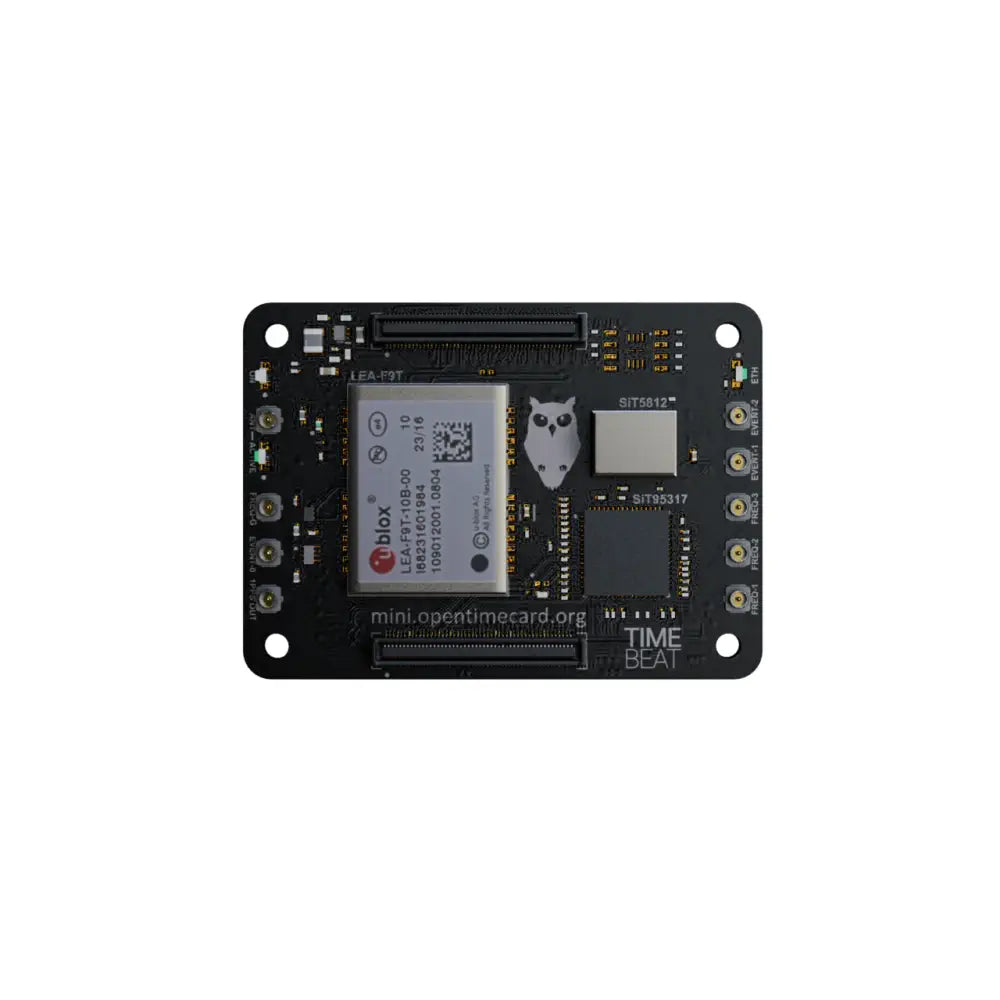

200 Pin top: Direct connection for the Raspberry Pi CM4 footprint
Ublox LEA-F9T
GNSS Features
184-channel U-blox F9 engine:
- GPS L1C/A, L2C, L5 GLO L1OF GAL E1B/C, E5b, E5a BDS B1I, B1C, B2a QZSS L1C/A, L2C, L5 NavIC L5 SBAS L1C/A: WAAS, EGNOS, MSAS, GAGAN* Frequency Bands: L1 and L2
- Position Accuracy: 1.5 m CEP
- Timing Accuracy (1 PPS): <5ns (typical)
Time-to-First-Fix (TTFF):
- Cold Start: 26 seconds
- Reacquisition: 1 second
SiT5812 1.5us/24h mems OCXO
Frequency Stability: Down to ±1 ppb (parts per billion) over temperature
Frequency Tuning:
- Supports fine frequency adjustments in steps as low as 1 ppt (parts per trillion)
- Digital control for precise frequency tuning and correction
Aging Stability:
- ±0.1 ppb/day
Performance
Holdover and Retrace:
- 1.5us/24 hours
Temperature-Compensated MEMS:
- MEMS technology with built-in temperature compensation for high accuracy across temperature ranges
- Stratum 3e Holdover: Supports holdover mode for telecom and network applications to meet Stratum 3e timing requirements
Renesas 8A34002E clock generator
Frequency and Output
• Output Frequency Range: 0.5 Hz to 1GHz (on request 1Hz default)
• Number of Outputs: Up to 7 programmable outputs (on request 1Hz default)
Frequency Tuning and Accuracy:
• Tuning Resolution: below 1ps
