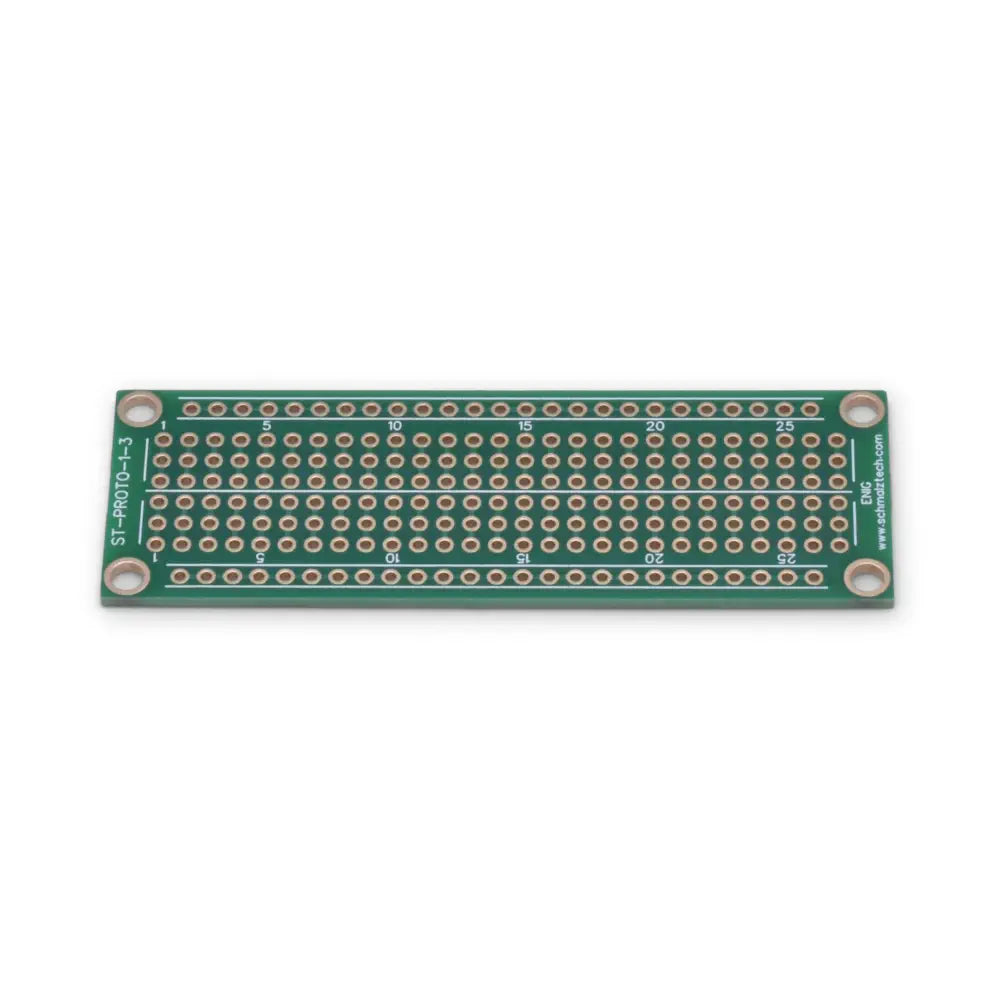

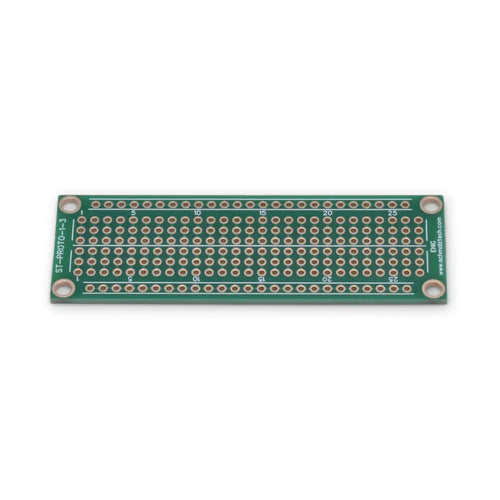

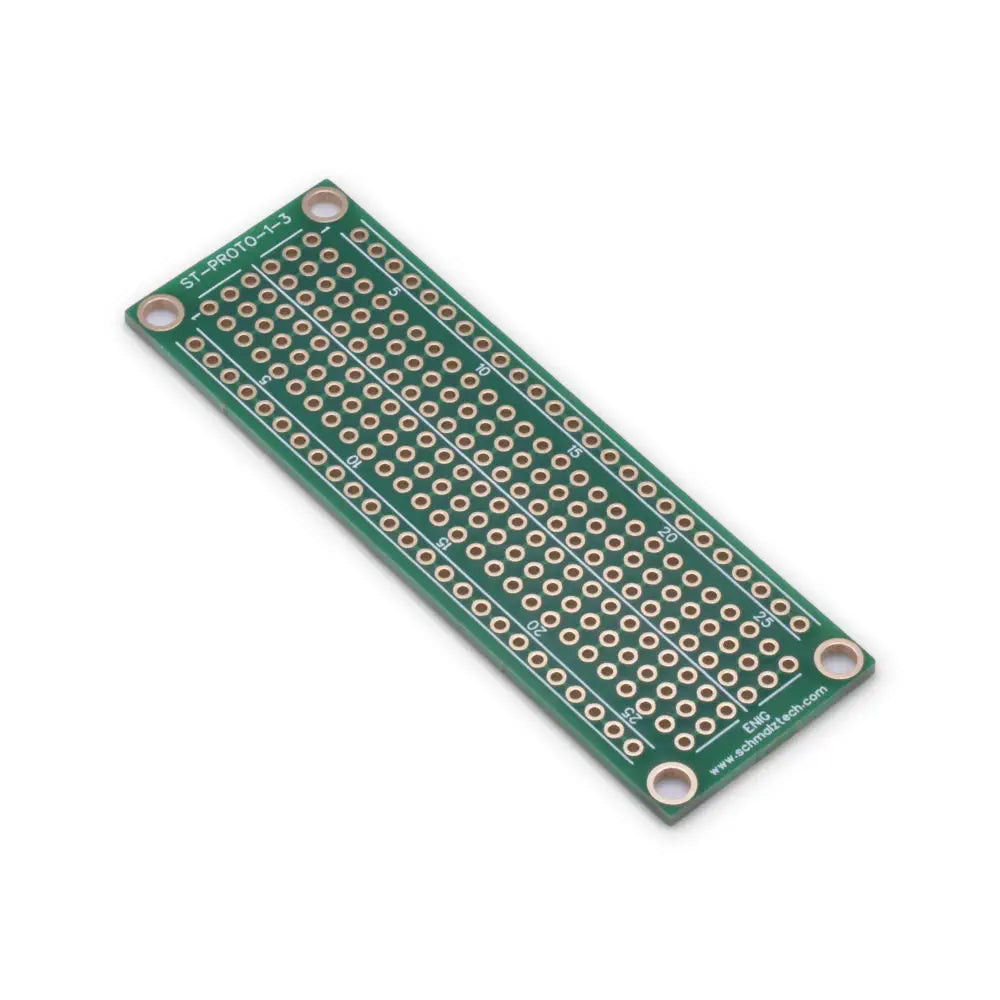

Prototyping PCB, Protoboard - 1" x 3"

SchmalzTechSKU: RM-SCHM-00A
Manufacturer #: ST-PROTO-1-3

Price  :
Sale price $3.59

Shipping calculated at checkout

Stock  :
In stock (4 units), ready to be shipped

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • High quality FR4 can withstand high temperature soldering and re-work
  • Standard 0.1" pitch holes enable compatibility with a large variety of components
  • Rows are electrically connected for fast circuit creation
  • Four mounting holes allow for easy fixturing

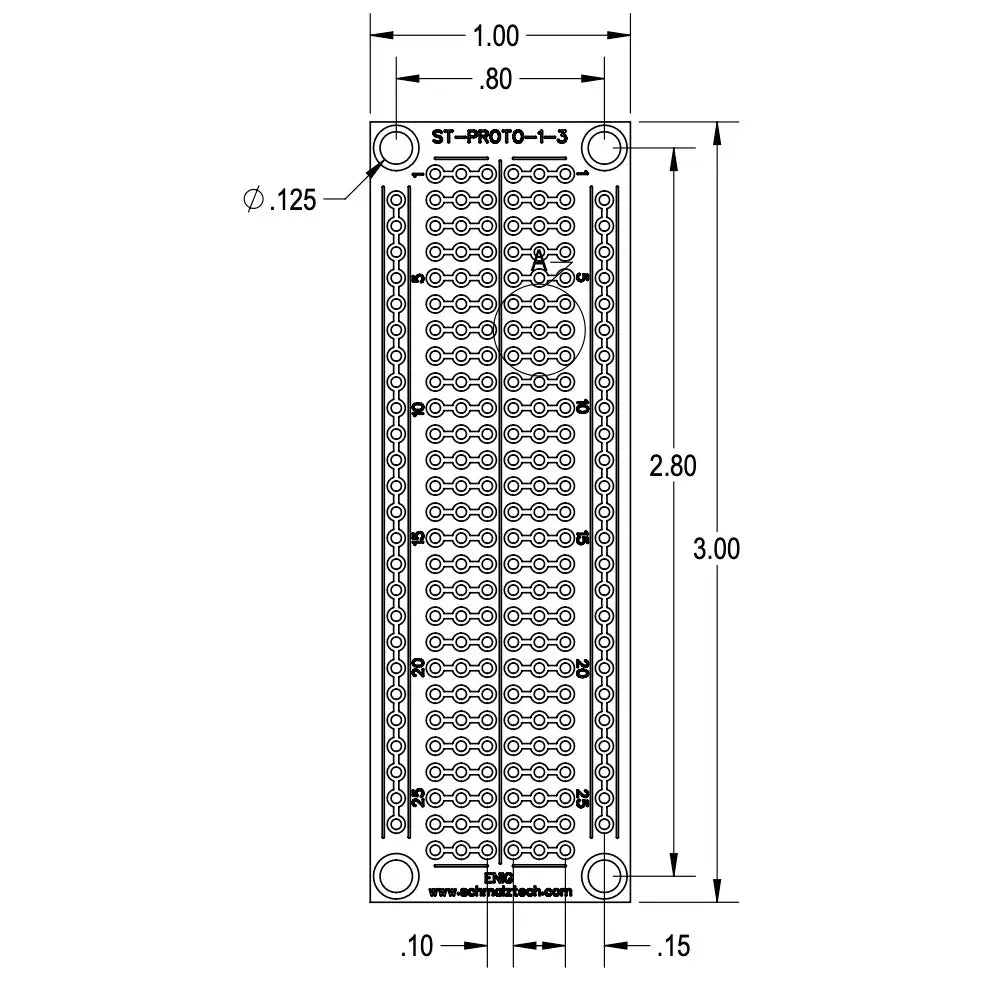

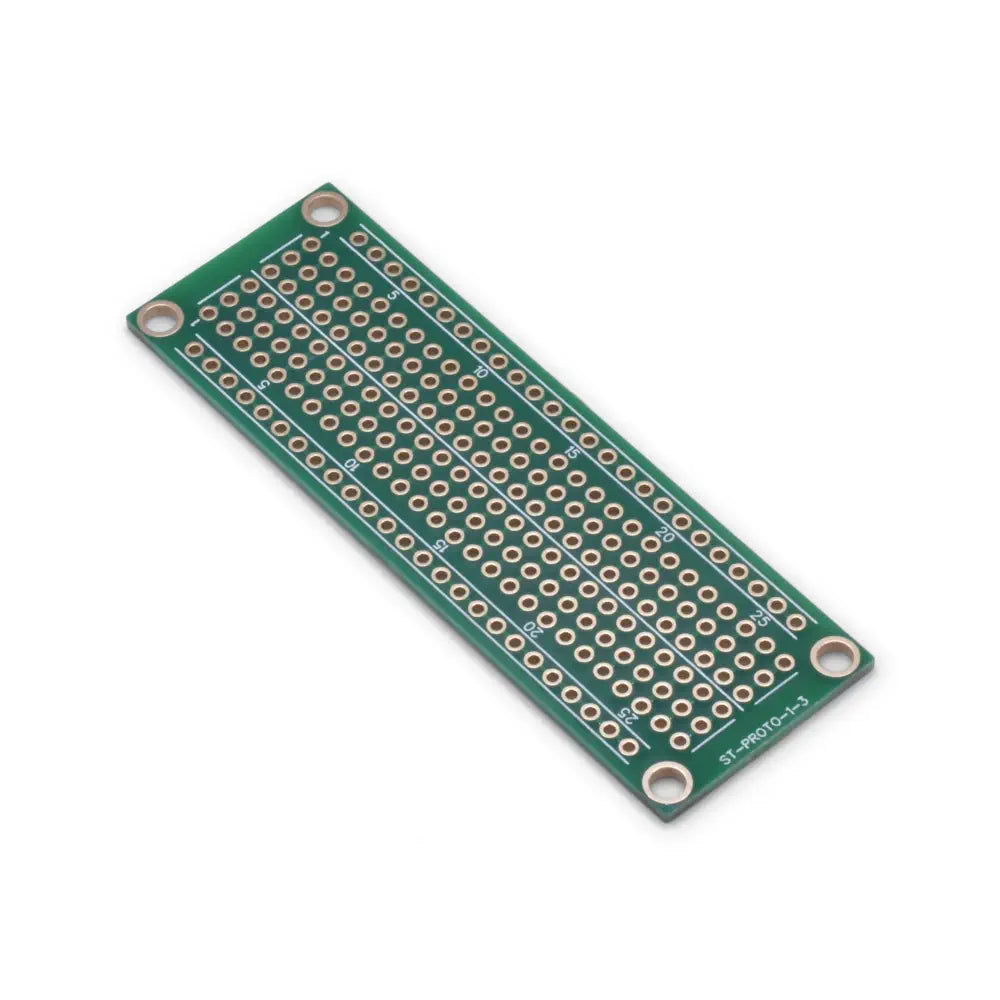

This protoboard is the perfect tool for quickly prototyping an electronic circuit or turning a breadboard prototype into something more permanent. These boards have an ENIG surface finish and are made from high quality FR4 which can withstand high temperature soldering and re-work. The holes on this prototyping PCB have a standard 0.1" pitch to enable compatibility with a large variety of electronic components. The space between the power rails and the adjacent rows is 0.15". Each hole is electrically connected to a row of holes to make building circuits fast and easy. See the drawing below for a detailed view of the electrical connections on this board. Both sides of this board have solder mask, making it easier to control solder flow and prevent unintentional bridges.

1pc ST-PROTO-1-3
1" x 3"

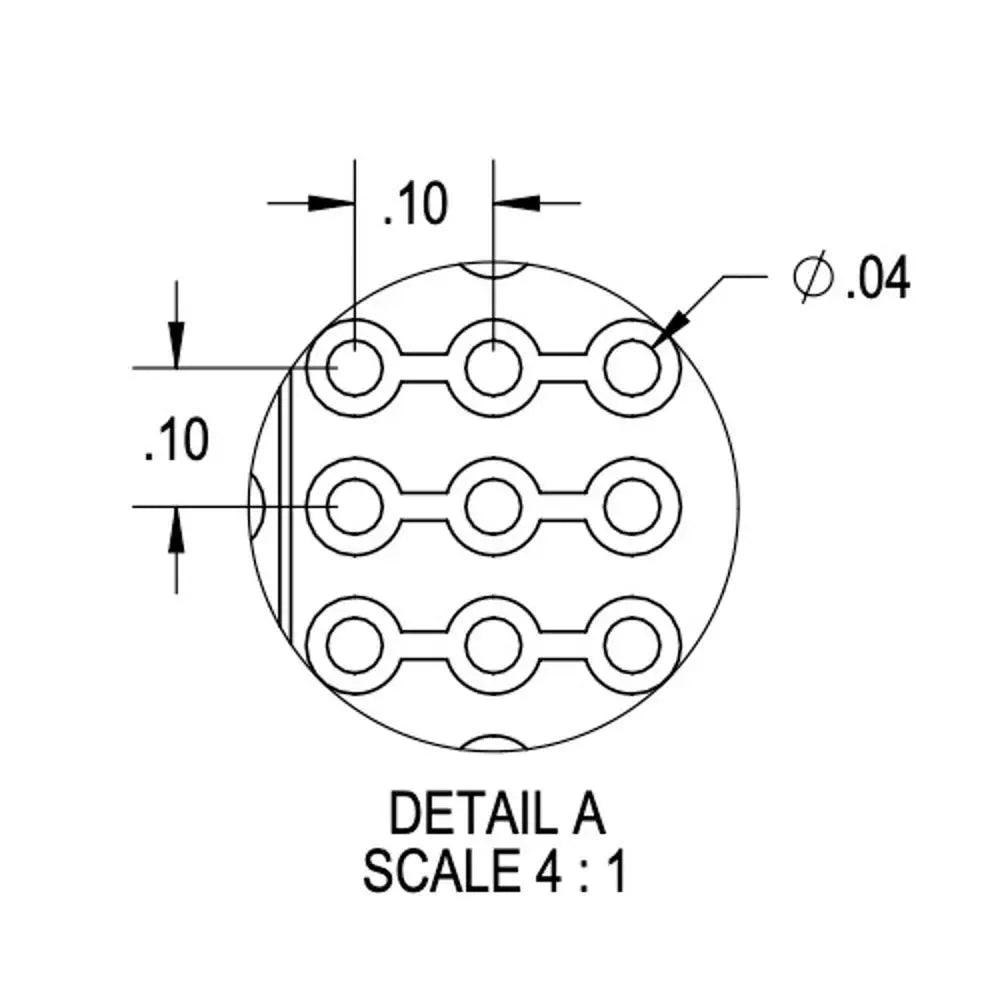

Hole Pitch: 0.1"

Hole Diameter: 0.040"

Mounting Holes: 4x - 0.125"

Surface Finish: ENIG

Temperature Rating: -30C to +100C
