RS485 Connector Expansion Shield for LattePanda V1

DFRobotSKU: RB-Dfr-1572
Manufacturer #: DFR0684

Price  :
Sale price $24.90

Shipping calculated at checkout

On Demand See due date

This is an On Demand item and is not normally stocked. We will order it for you along with our next purchase from the supplier.

* Delays depend on the order frequency from each supplier and the approximate arrival date is indicated in the due date. Returns are not accepted on On Demand and Clearance Items except when they are found defective, in which case the product may be repaired or replaced at RobotShop's discretion.

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • RS485 Connector Expansion Shield for LattePanda V1
  • Enhances data transmission reliability
  • Provides industrial-grade RS485 interface
  • Includes 12V power output
  • Features signal and power isolation
  • Supports stackable connection design

The RS485 Connector Expansion Shield for LattePanda V1 is an industrial-grade module designed to enhance the reliability of data transmission for the LattePanda V1 main-board. This shield provides a robust RS485 interface (OPEN4) with features such as signal isolation, power isolation, lightning surge protection, transient voltage resistance, and bus protection. These attributes ensure dependable data communication and safeguard the main-board from potential electrical hazards.

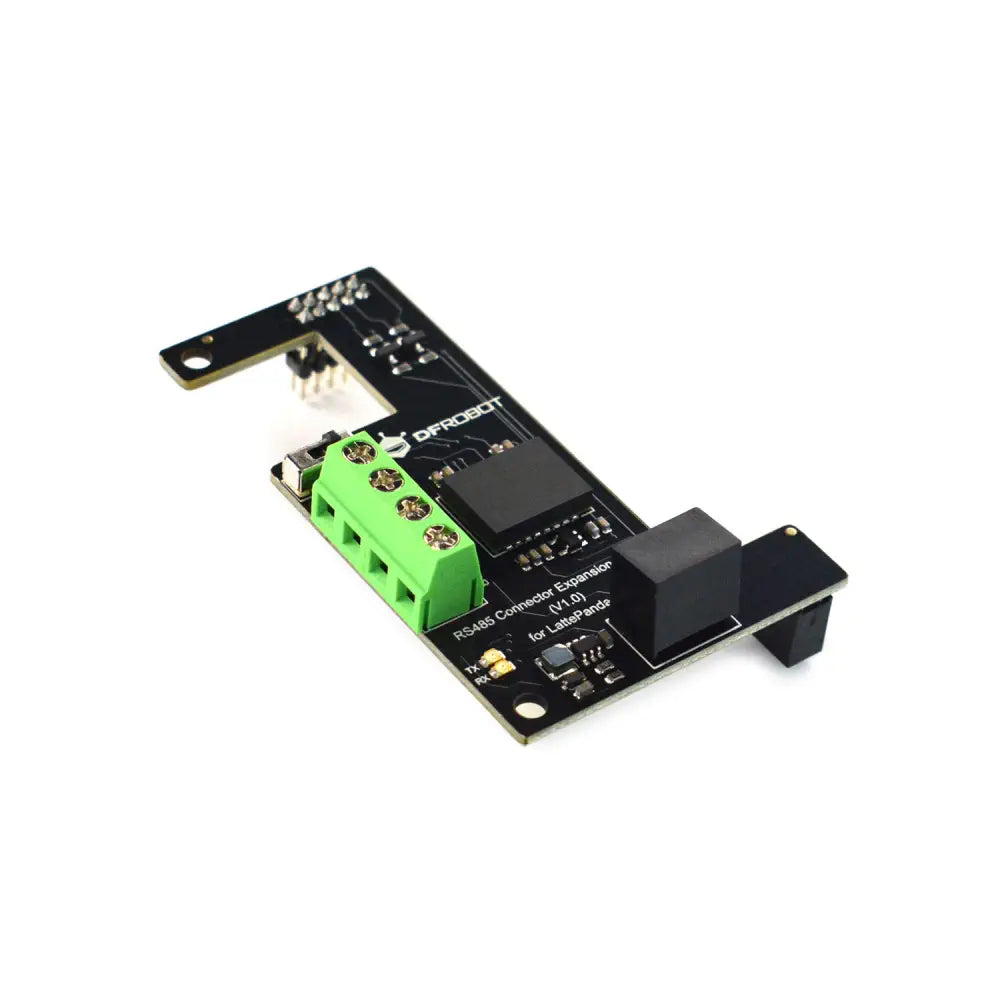

RS485 Connector Expansion Shield for LattePanda V1

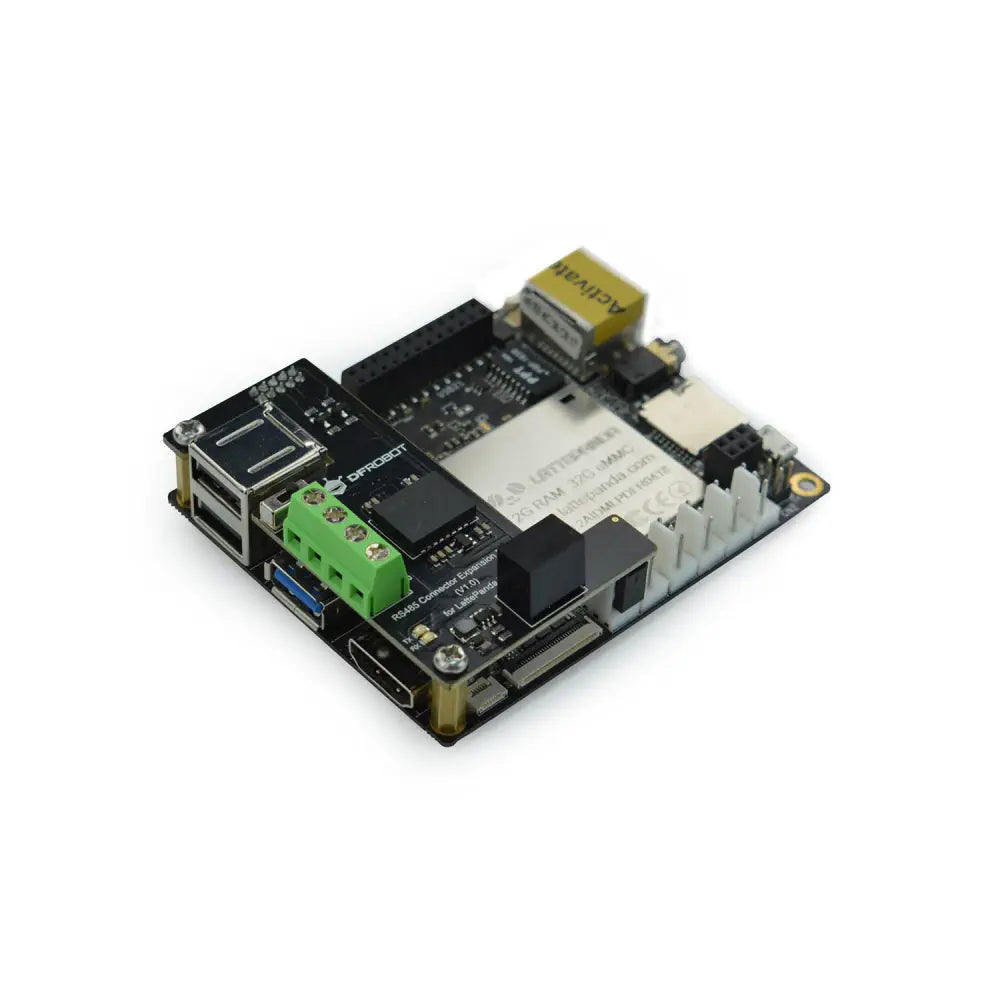

Additionally, the module includes a 12V power output and an on-board 120Ω terminal matching resistor, which can be controlled via a switch. Its stackable connection design allows for easy installation onto the LattePanda main-board using copper columns, without obstructing the heat dissipation area. This makes the RS485 Connector Expansion Shield suitable for use in industrial environments.

RS485 Connector for LattePanda V1

Note: Ensure proper handling to avoid electrical hazards.

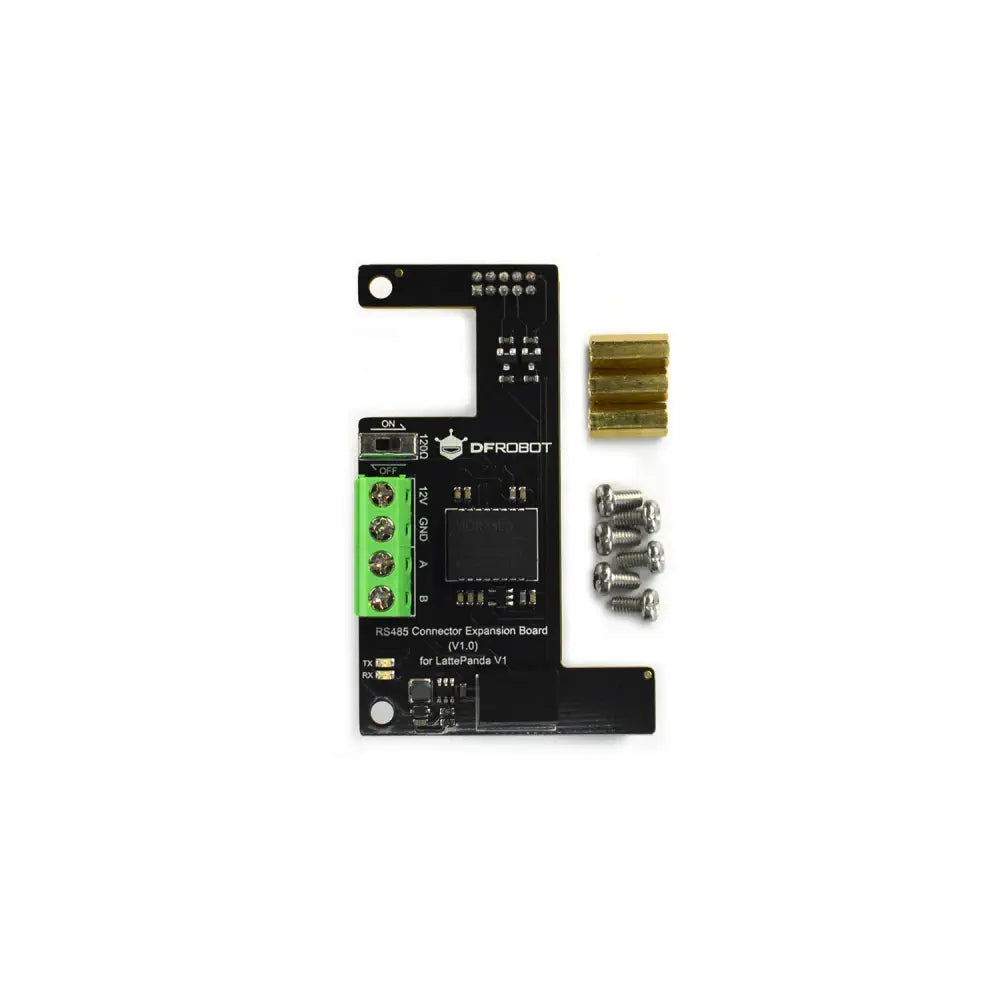

  • 1x RS485 Connector Expansion Shield for LattePanda V1
  • 3x M3 Double-way Hexagonal Copper Column (12mm)
  • 6x M3 Round Head Screw

RS485 Connector Expansion for LattePanda V1 - Dimensions cropped

  • Signal isolation and power isolation
  • Reliable communication
  • 12V power output
  • On-board 120Ω terminal matching resistance
  • Easy to connect and use
  • 12mm mounting copper columns
  • Operating voltage: 5V
  • TTL level: 1.8V
  • Output voltage: 12V
  • Operating temperature range from -40°C to +85°C
  • Baud rate fixed at 115200 bps for LattePanda V1 TTL
  • Isolation voltage of 2500VDC
  • Does not support hot plugging
