Lynxmotion Aluminum Multi-Purpose Sensor Bracket MPSH-01

LynxmotionSKU: RB-Lyn-75
Manufacturer #: MPSH-01

Price  :
Sale price $7.99

Shipping calculated at checkout

Stock  :
In stock, 15 units

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • High quality black anodized brushed aluminum bracket

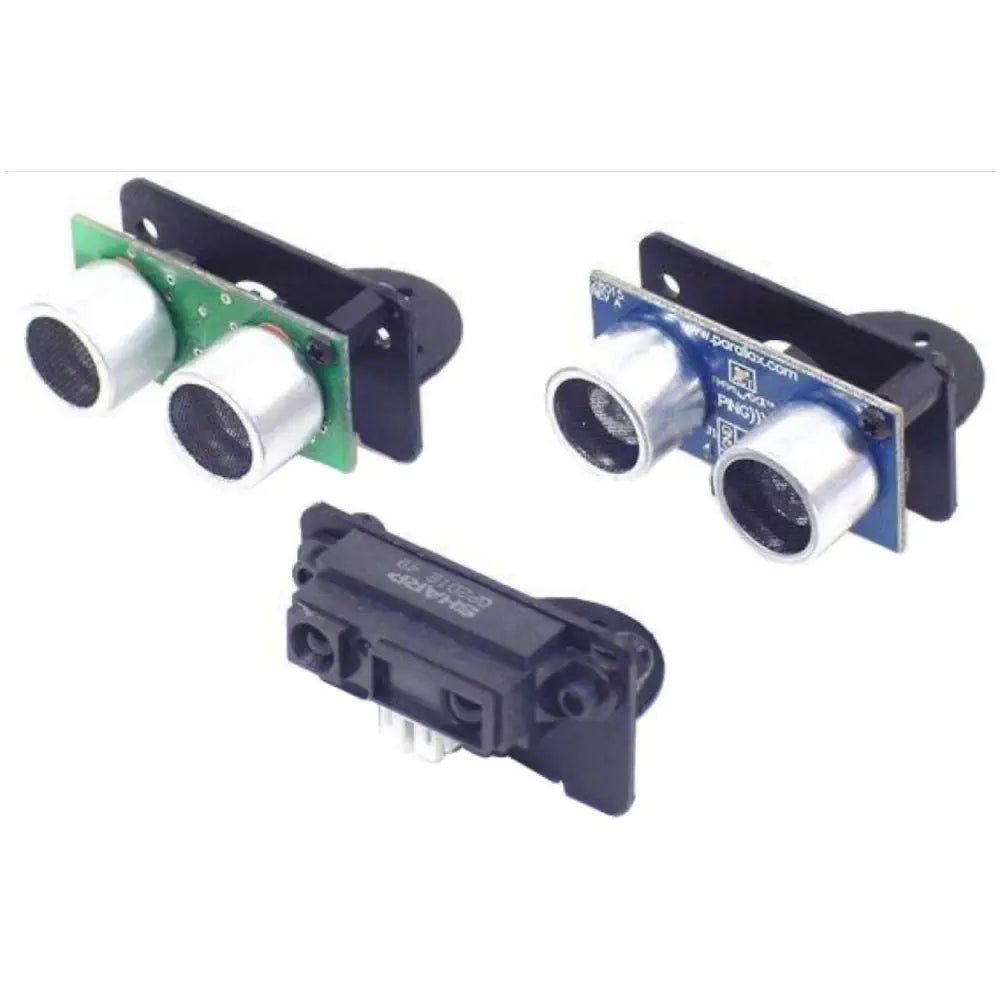

  • The universal mounting holes allow attaching the SRF-04, SRF-05, SRF-08 or the Sharp GP2 series of IR Sensors to a servo
  • Bracket can also be used to static mount the sensors to a robot body
  • Includes hardware to mount a single sensor to the bracket, and to mount the bracket to a servo

Assembly Instructions

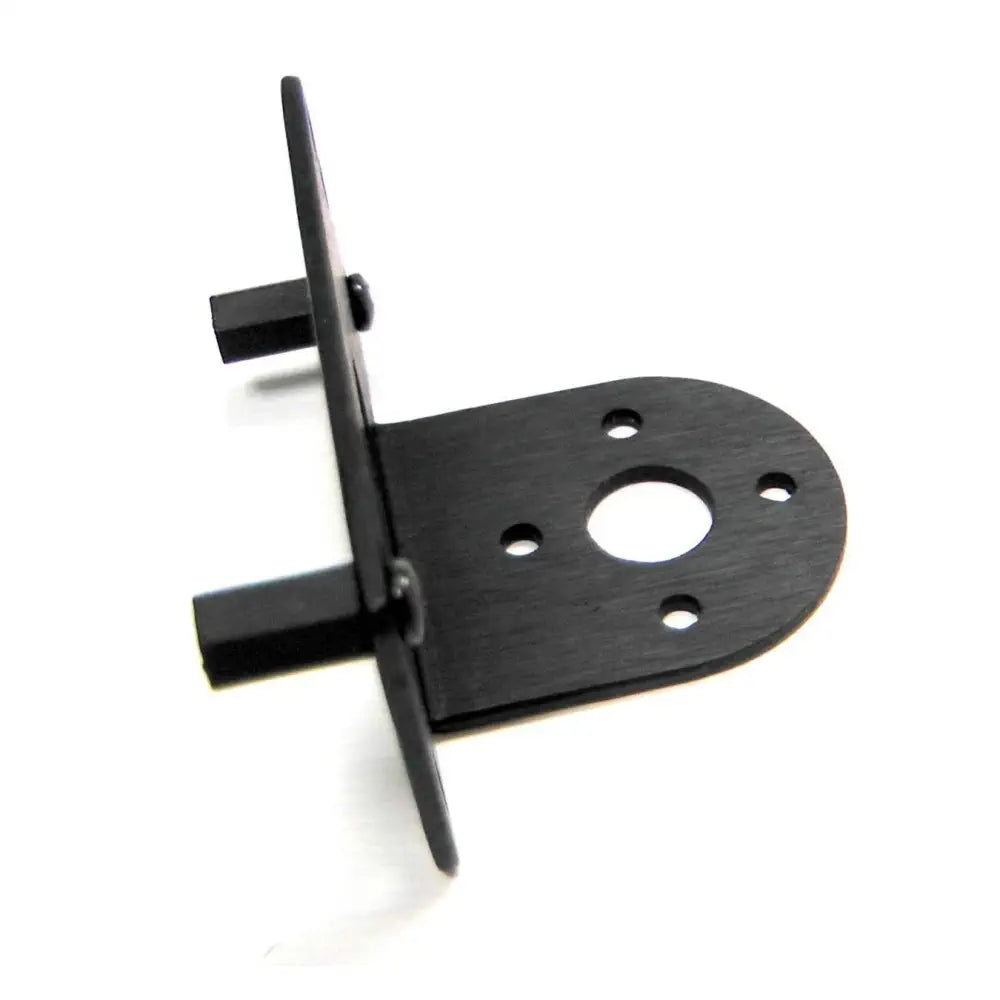

Step 1: Ultrasonic Sensor
Note that not all ultrasonic sensors work with this bracket. Tested sensors include the PING and several from Devantech. Attach the hex spacer to the bracket as shown, using two 2-56 x .250 screws and 2-56 spacers in opposite corners. Leave them a little loose.

Lynxmotion Aluminum Multi-Purpose Sensor Bracket MPSH-01- Click to Enlarge

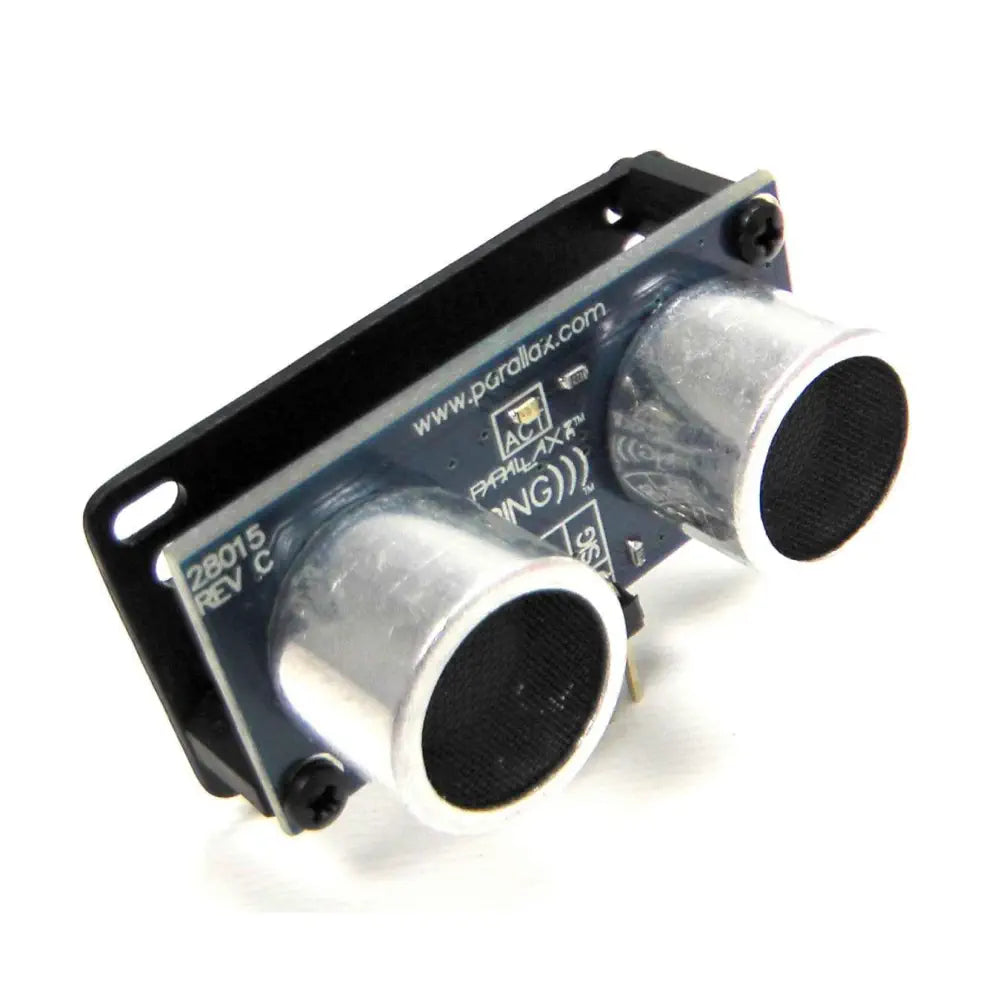

Step 2: Ultrasonic Sensor
Attach the ultrasonic sensor using two 2-56 x .250 screws and tighten in place.

Lynxmotion Aluminum Multi-Purpose Sensor Bracket MPSH-01- Click to Enlarge

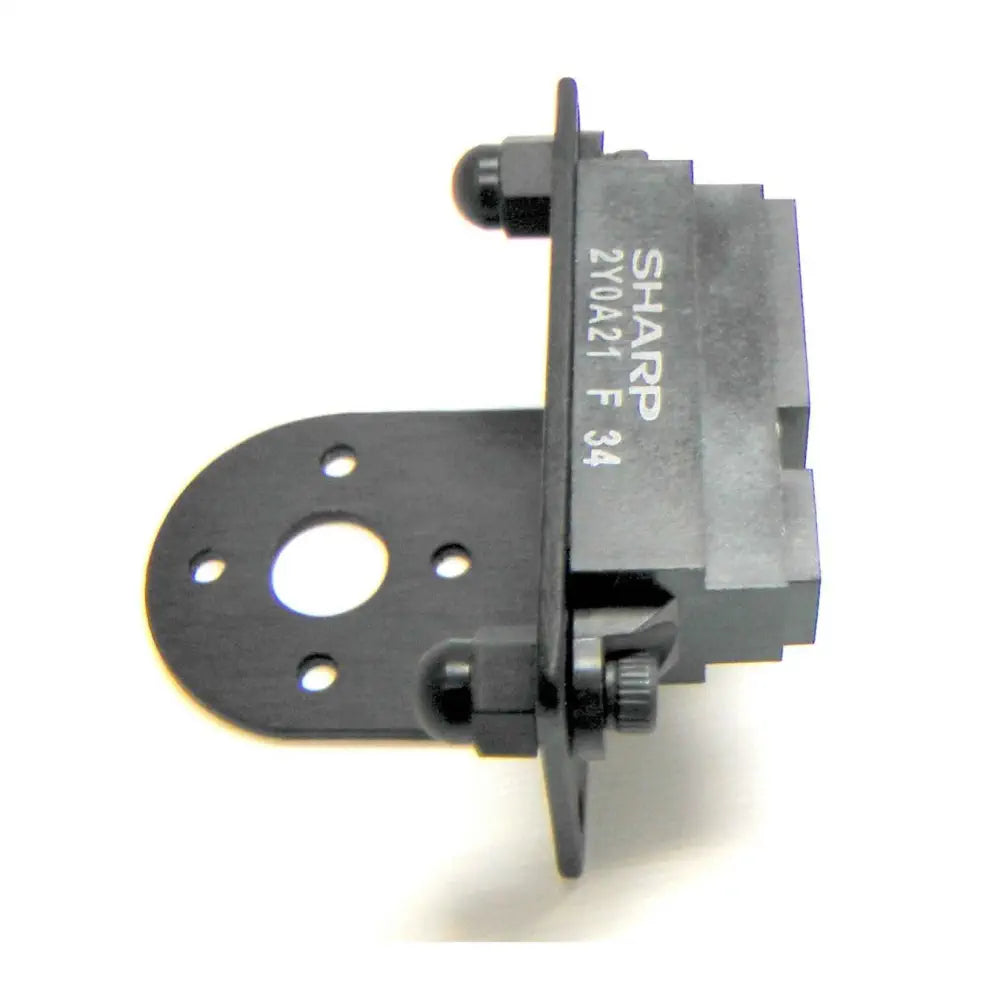

Step 3: IR Sensor
Attach a Sharp GP-series IR sensor to the bracket as shown using two 4-40 screws and nuts.

Lynxmotion Aluminum Multi-Purpose Sensor Bracket MPSH-01- Click to Enlarge

Step 4

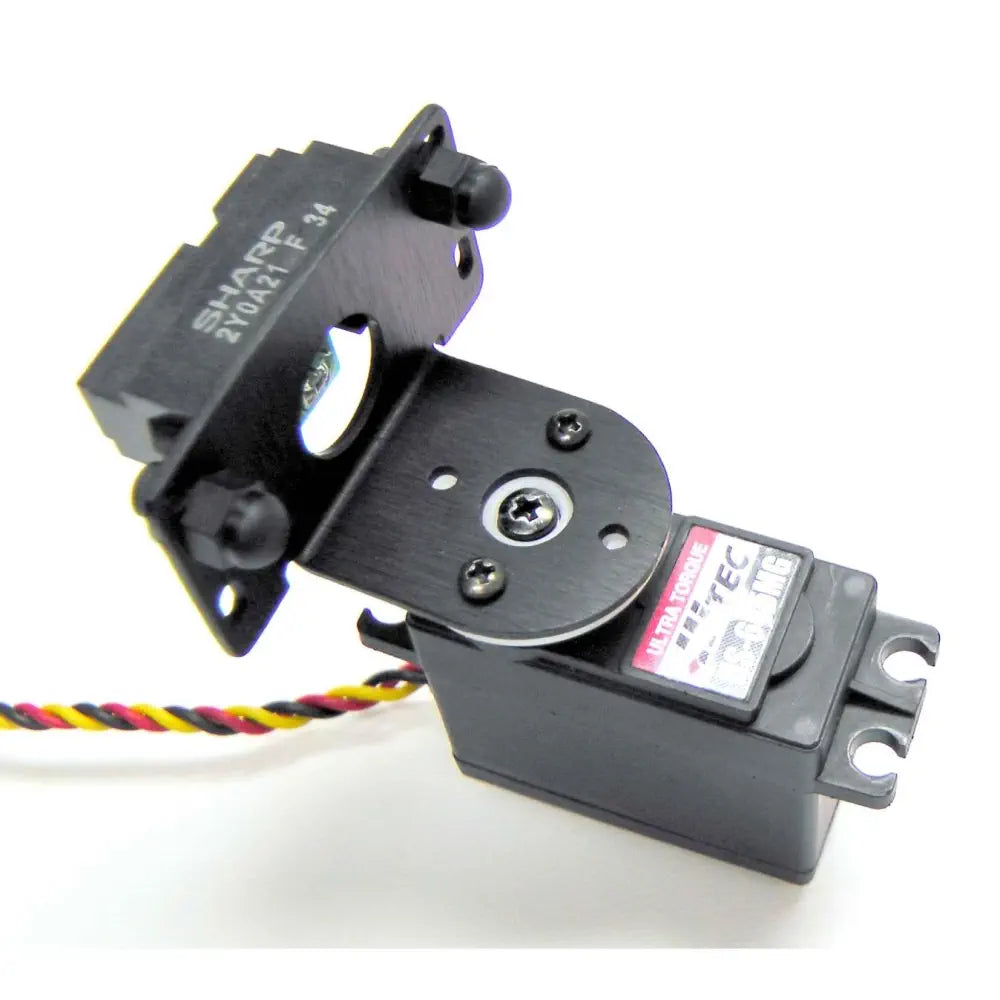

Attach the bracket to a Hitec standard nylon servo horn as shown using two #2 tapping screws.
