Lynxmotion SES-V2 LED Board for 12V Lithium Batteries for LSS (LSS-LED)

LynxmotionSKU: RB-Lyn-1140
Manufacturer #: LSS-LED-KT

Price  :
Sale price $18.00

Shipping calculated at checkout

Stock  :
In stock, 18 units

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Lynxmotion SES-V2 LED Board for 12V Lithium Batteries for LSS (LSS-LED)
  • LSS mounting pattern
  • LED lighting for your Lynxmotion SES V2 projects
  • Two power options: LSS bus or 3S Lithium balance port
  • Operating voltage: 12V
  • White ~308.8 lumen general purpose LED

The Lynxmotion SES-V2 LED Board for 12V Lithium Batteries for LSS (LSS-LED) is intended to add lighting to your servo erector set (SES) v2 project. The module is meant to be connected to the standard mounting of an Lynxmotion Smart Servo (LSS) Motor and can be added to the serial bus.

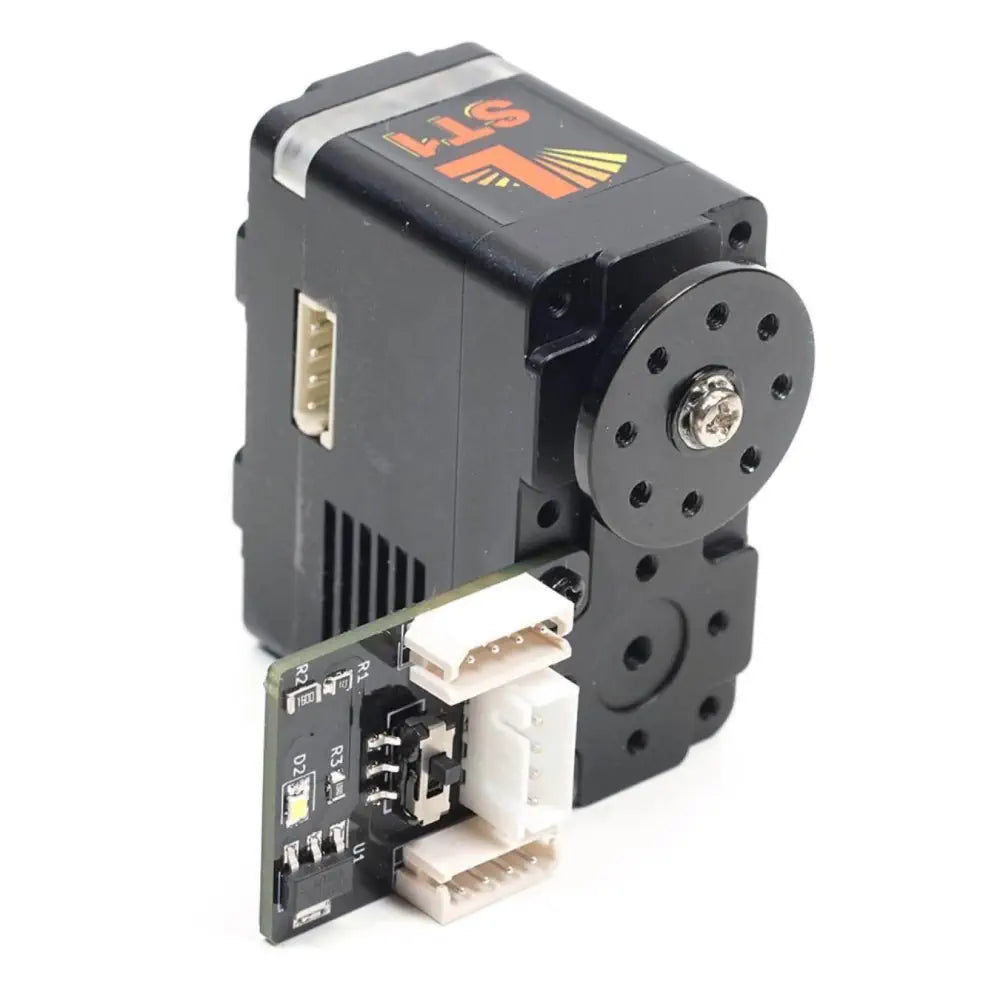

Lynxmotion LSS - Module Mounting - Click to Enlarge

Like the LSS which can be operated over a range of input voltages, this LED module is meant to operate between 6 V and 12 V. The module can be powered one of two ways where the onboard switch selects which of the two sources powers the LED:

LSS-LED - LSS Bus - Click to Enlarge

Four-pin LSS bus (Tx, GND, 12V, Rx)

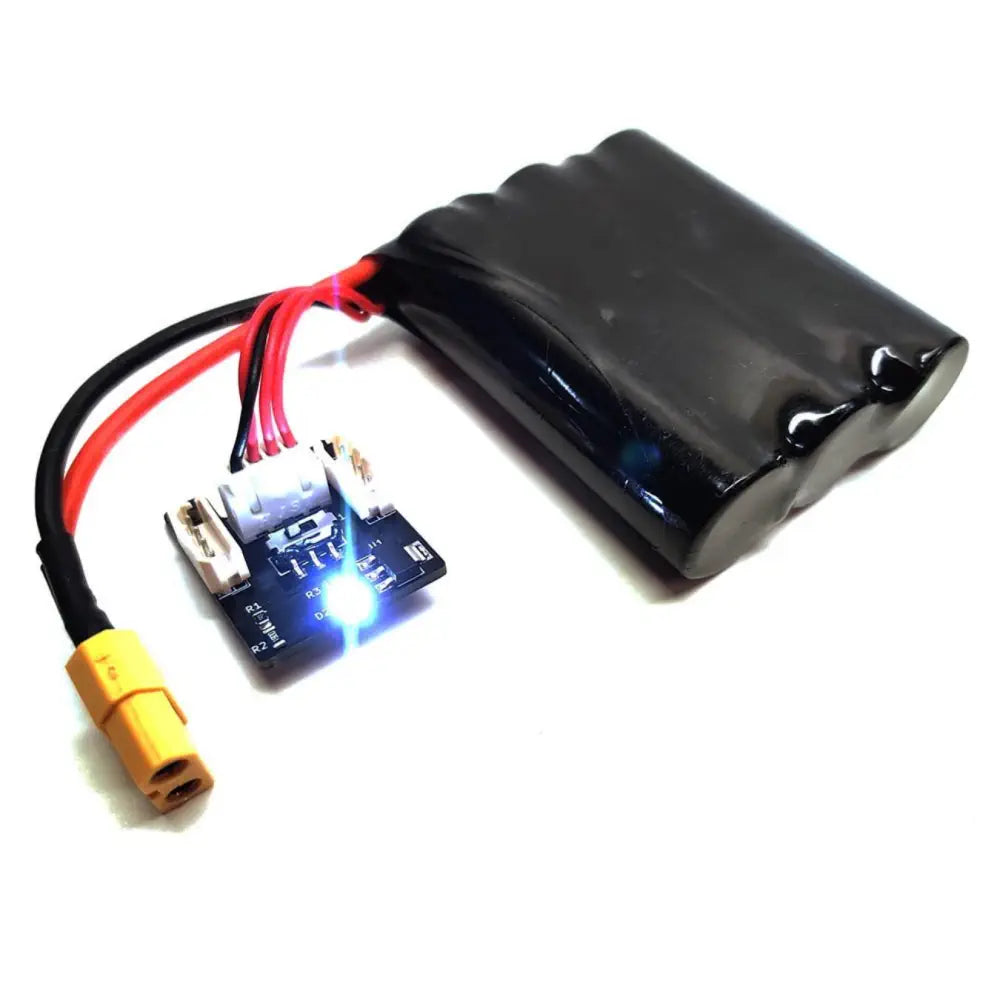

LSS-LED - Battery - Click to Enlarge

Four-pin, three cell Lithium balance port (3 individual cells = 11.1V)

  • 1x Lynxmotion (LSS) - LED Module
  • 2x 2-56 x 1/4 inch Phillips Pan Head Screw

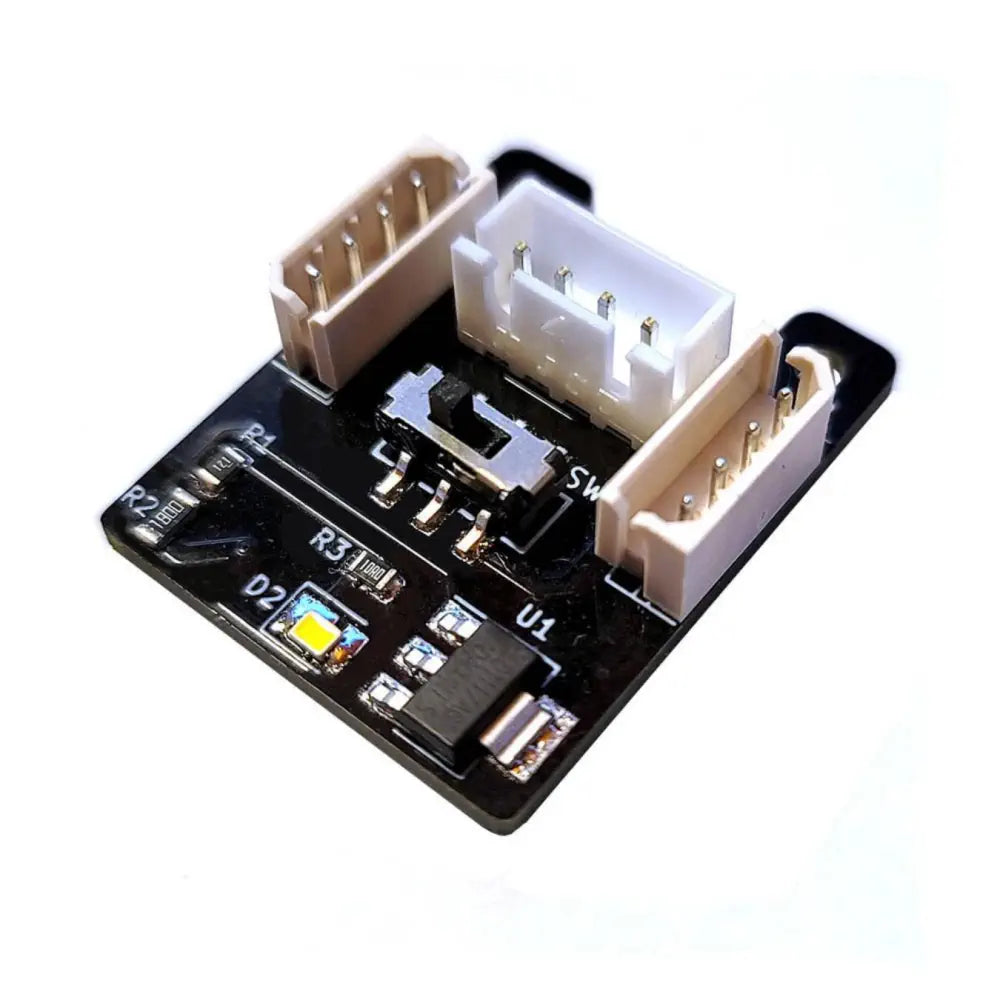

Lynxmotion (LSS) - LED Module - Click to Enlarge

  • Input Voltage: 12 V Nominal (6.4 V to 18 V)
  • Connections:

LSS Connector (Molex 99990988)
Lithium balance port (JST B4B-XH-A)

  • LED: Everlight 37-21S (~38 lumen white LED)
  • Current: ~100 mA
