Description

  • Photoelectric rotary encoder with aluminum material
  • Metal shell and stainless steel shaft
  • It generates AB two-phase orthogonal pulse signal
  • 400 pulses/round for each phase
  • 1600 pulses/round for dual-phase 4 times output

This Incremental Photoelectric Rotary Encoder - 400P/R is an industrial incremental photoelectric rotary encoder with aluminum material, metal shell and stainless-steel shaft. It generates AB two-phase orthogonal pulse signal though the rotation of the grating disk and optocoupler. 400 pulses/round for each phase, and 1600 pulses/round for dual-phase 4 times output. This rotary encoder supports max 5000 r/min speed. And it can be used for speed, angle, angular velocity and other data measurement.

Incremental Photoelectric Rotary Encoder - 400P/R- Click to Enlarge

The photoelectric rotary encoder has a NPN open collector output. It could work with Microcontroller with internal pull-up resistors directly. And it is using 750L05 voltage regulator chip, which has a DC4.8V-24V wide range power input, compatible with Arduino, STM32, PLC and other types of microcontrollers.

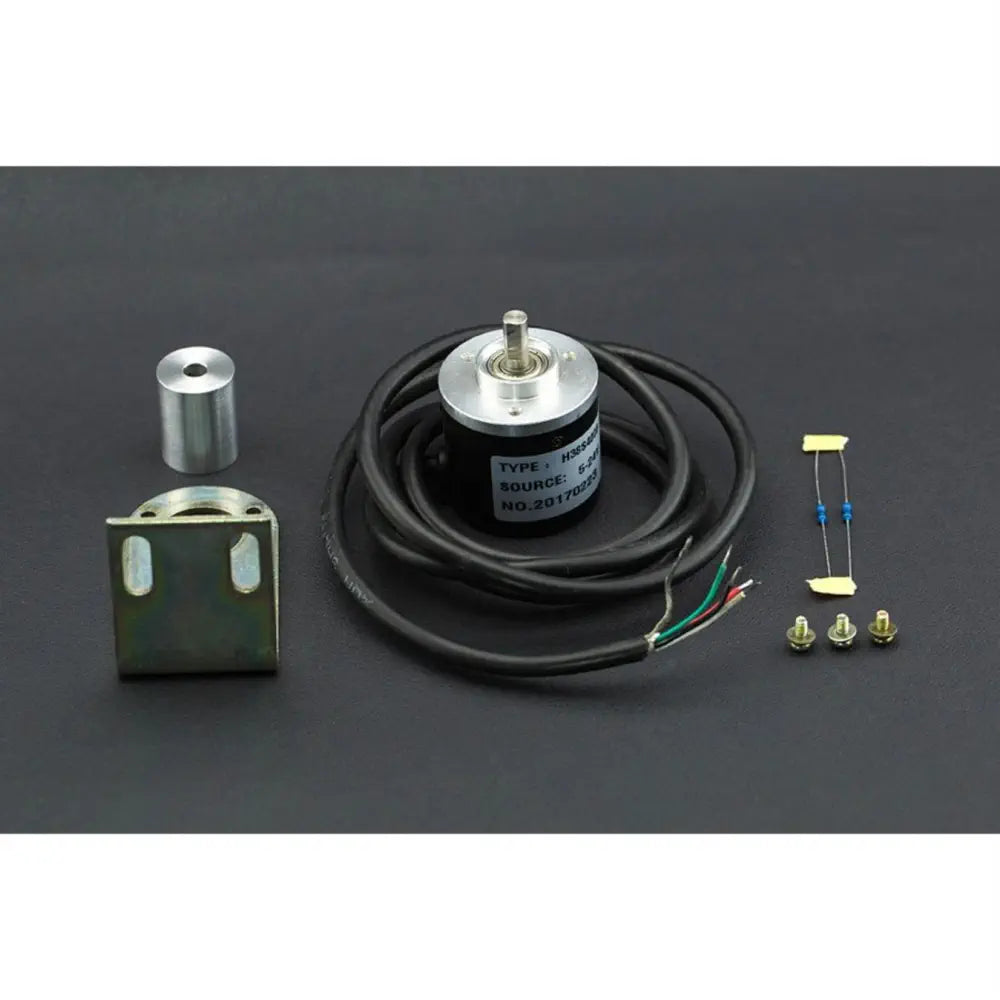

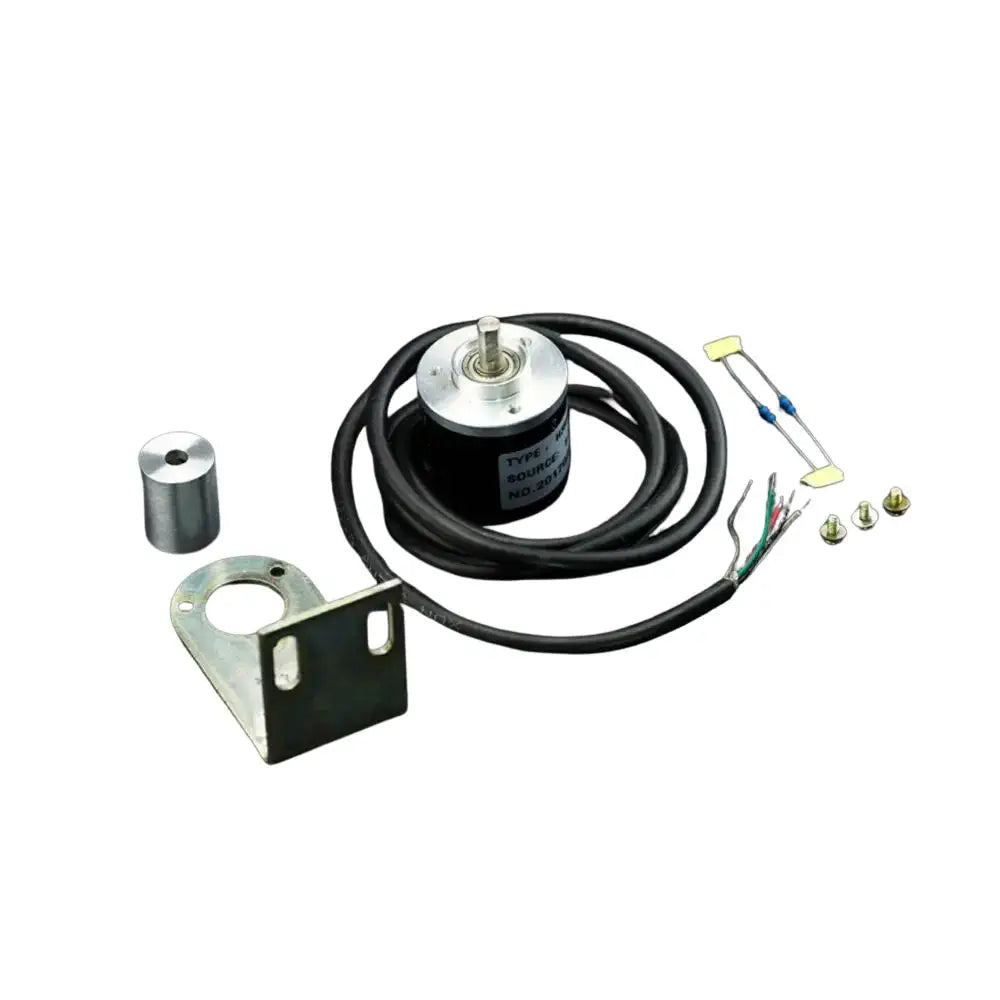

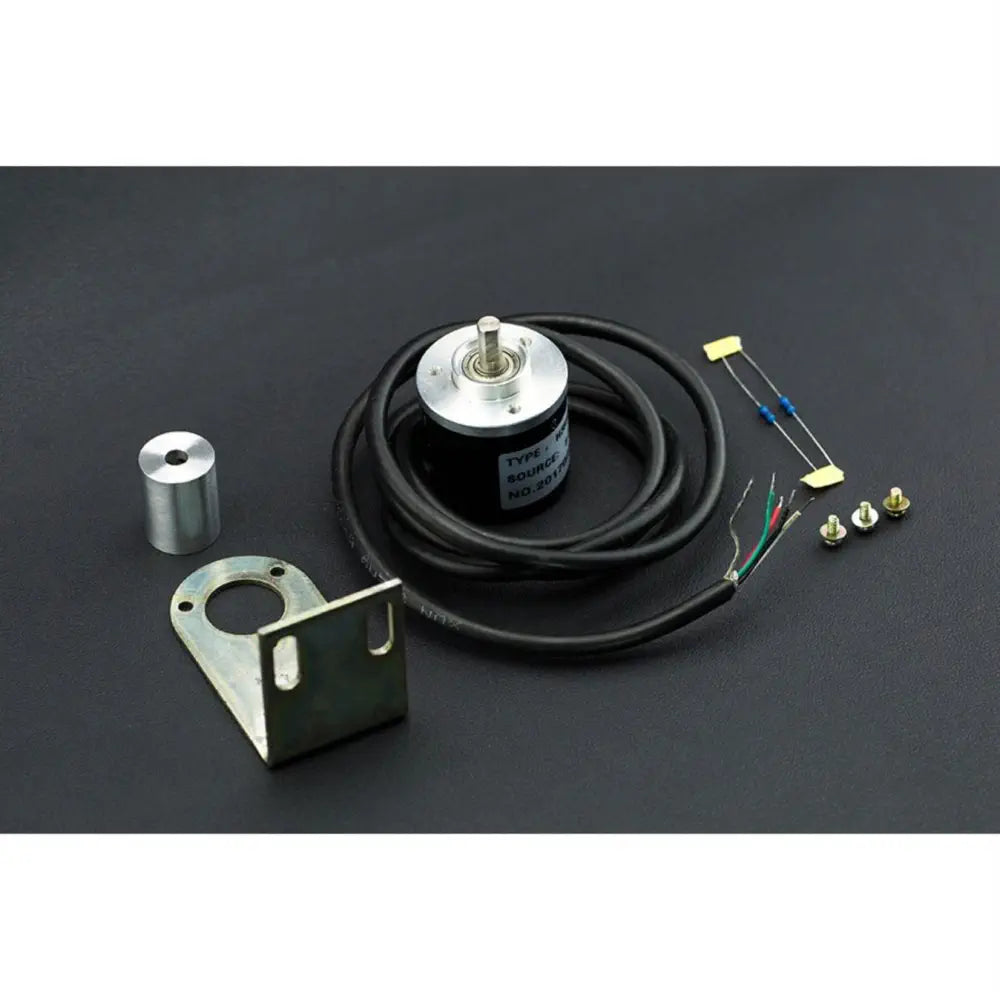

  • 1 x Encoder
  • 1 x Encoder mounting bracket
  • 1 x 6mm coupling
  • 1 x Screw accessories
  • 2 x 10K resistance
  • Supply Voltage: 4.8 ~ 24 V
  • Encoder Body Size: Φ39 x 36.5 mm
  • Output Shaft Diameter: Φ6 x 13 mm
  • Outside Shaft Platform: Φ20 x 4.85 mm
  • Fixing Holes Screws: M3
  • Weight: 234 g

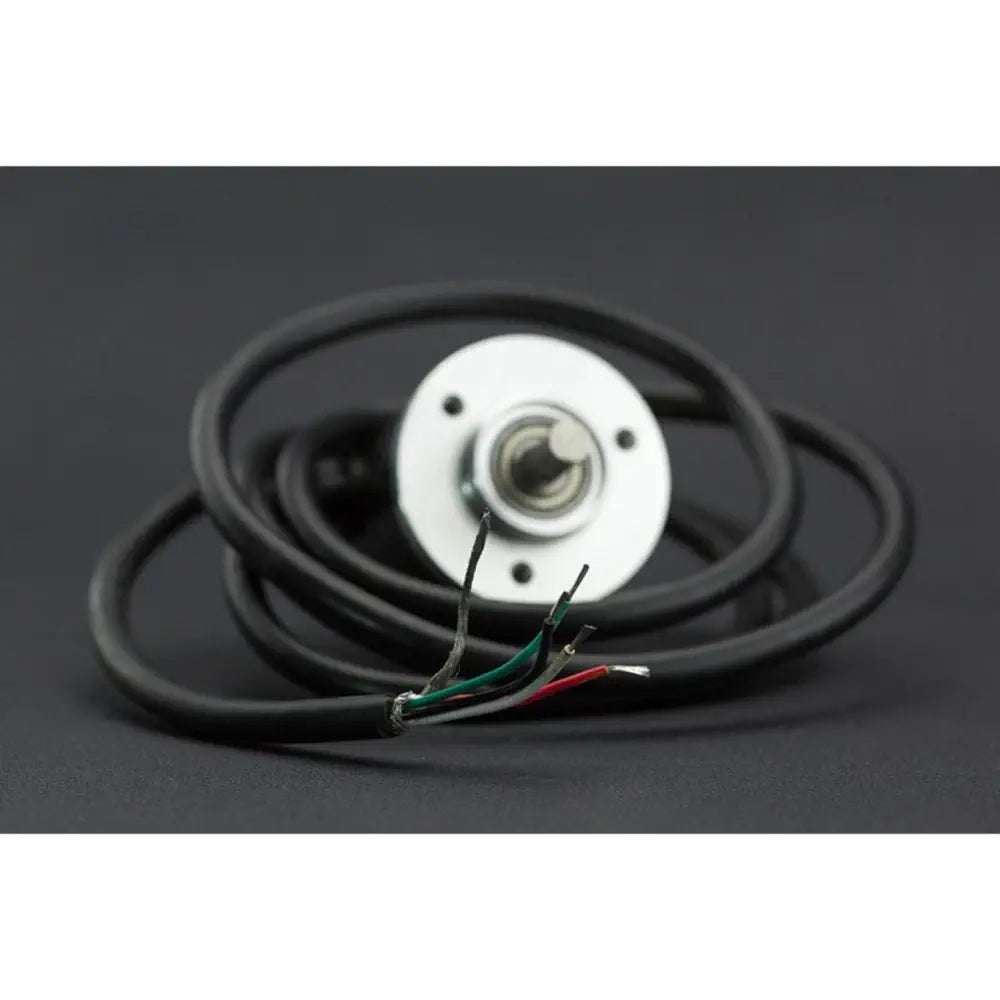

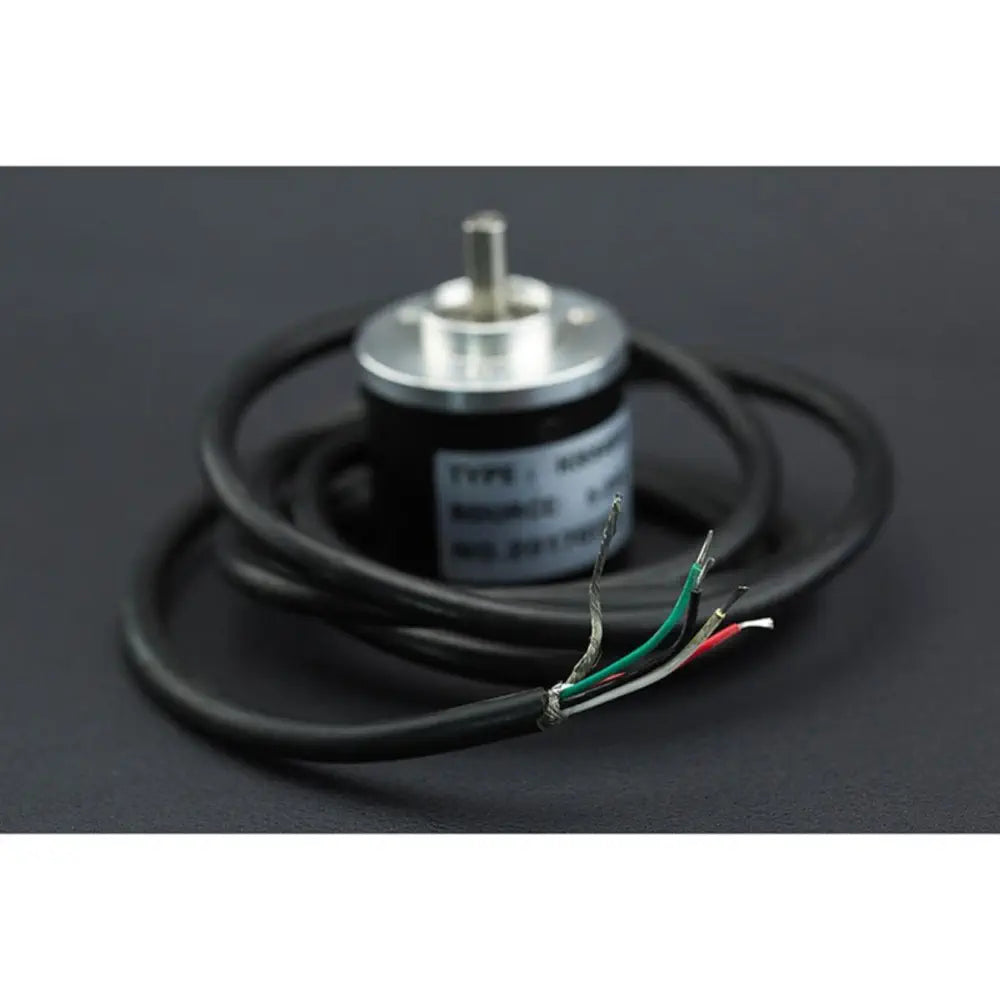

  • Wiring (also, see wiring diagram in the Useful Links)


    Red VCC Power +
    Black GND Power -
    White A Pulse A (Need pull-up Resistor)
    Green B Pulse B (Need pull-up Resistor)
