Digital / Analog Trainer

Save $47.47
ElencoSKU: RB-Ibo-57
Manufacturer #: XK150

Price  :
Sale price $166.53 Regular price $214.00

Shipping calculated at checkout

Stock  :
Only 1 unit left

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Digital/Analog Trainer
  • Built-in power supply
  • Function (wave) Generator
  • Rugged case


The Elenco XK-150 Digital/Analog Trainer meets the needs of electronic training programs. The built-in power supply is capable of providing both DC and AC voltage at up to 0.25A. The wave generator can produce adjustable sine waves and square waves.

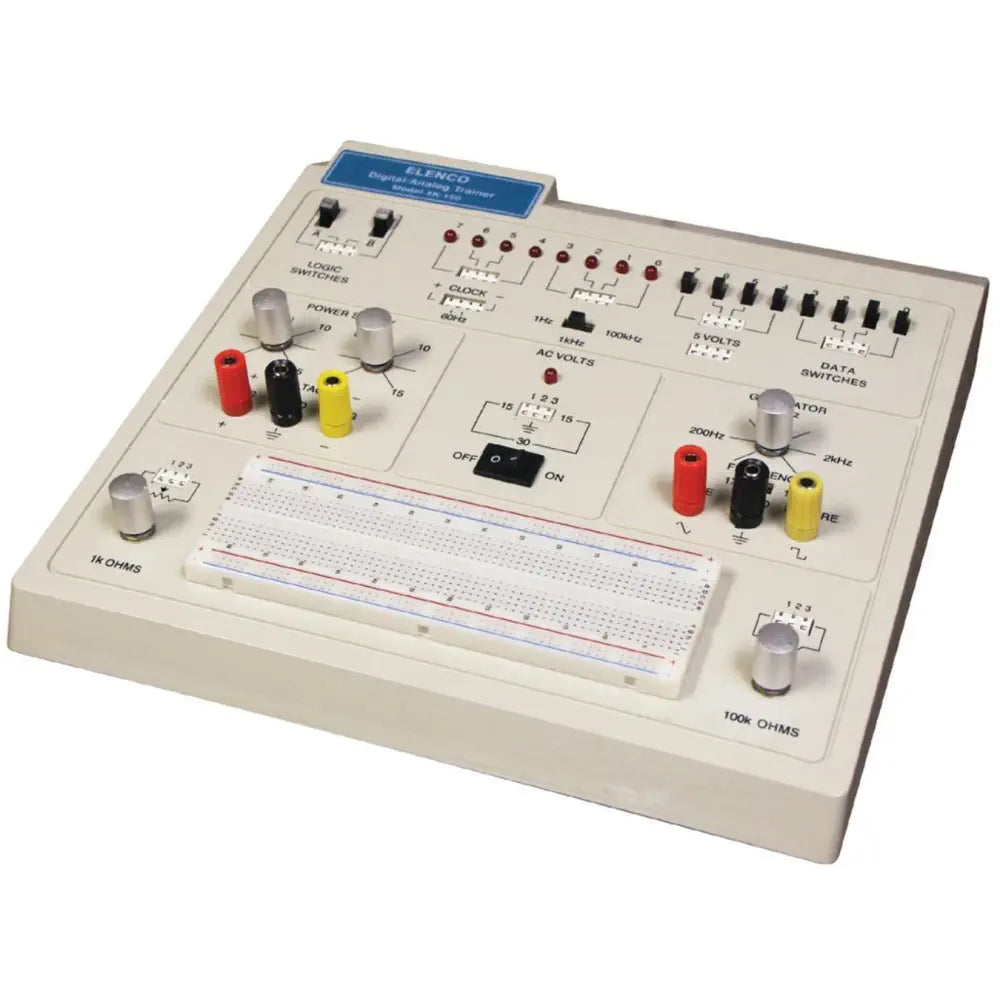

Digital / Analog Trainer- Click to Enlarge

Digital / Analog Trainer WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

PDF Files
User Manual

Power Supplies

  • Variable power supply.
  • +1.25V to 15VDC @ 0.25A.
  • -1.25V to -15VDC @ 0.25A.
  • +5VDC @ 0.25A.
  • +30VAC center-tapped to 15VAC @ 0.25A
  • Power Requirement : 120V AC 60Hz

Case

  • High impact molded case 2"(H) x 11"(D)
  • Flow-thru cooling to ventilate the power supply
  • Includes 830 tie point breadboard with two bus strips
  • 1K ohm ad 100k ohm potentiometers (separate)

Digital Section

  • Eight Data Switches and two no bounce logic switches.
  • Eight LED readouts, buffered.
  • Clock frequency 1Hz, 1kHz, 100kHz, 60Hz.
  • Clock amplitude 5Vpp square wave.

Analog Section

  • Function Generator - Sine, Square Wave.
  • Frequency adjustable in two ranges from 200 -40k.
  • Amplitude Sine 4Vpp., Square 12Vpp.
