Description

  • Digilent JTAG-SMT4 Surface-Mount Programming Module
  • Integrates with Xilinx Tools for easy programming
  • Features three UART channels up to 12Mbaud
  • Drives JTAG bus up to 30Mbit/sec via USB 2.0
  • Allows software-based resets of Xilinx Zynq®
  • Supports JTAG signals from 1.8V to 3.3V

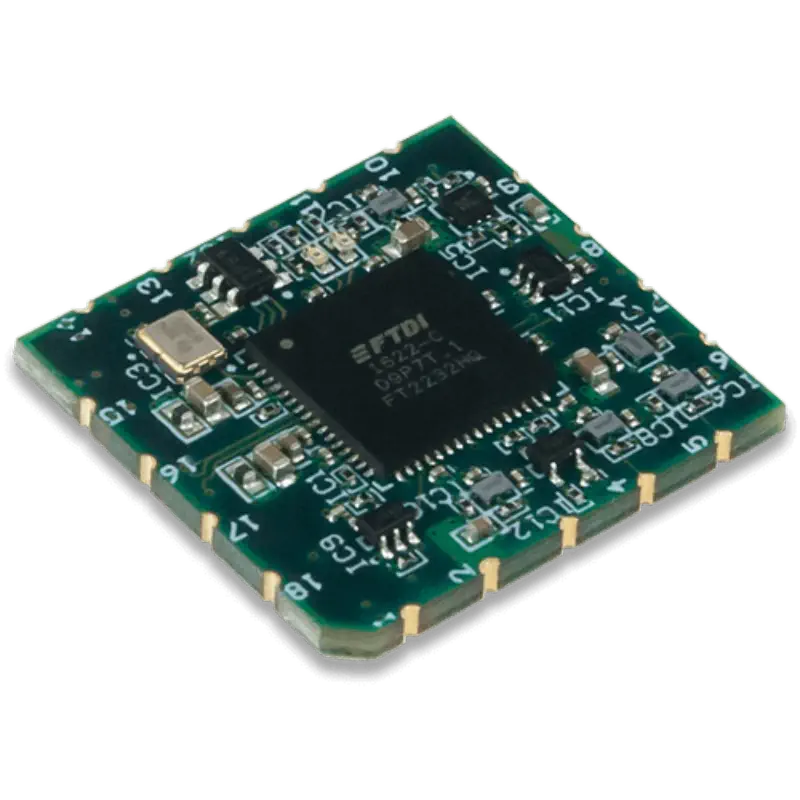

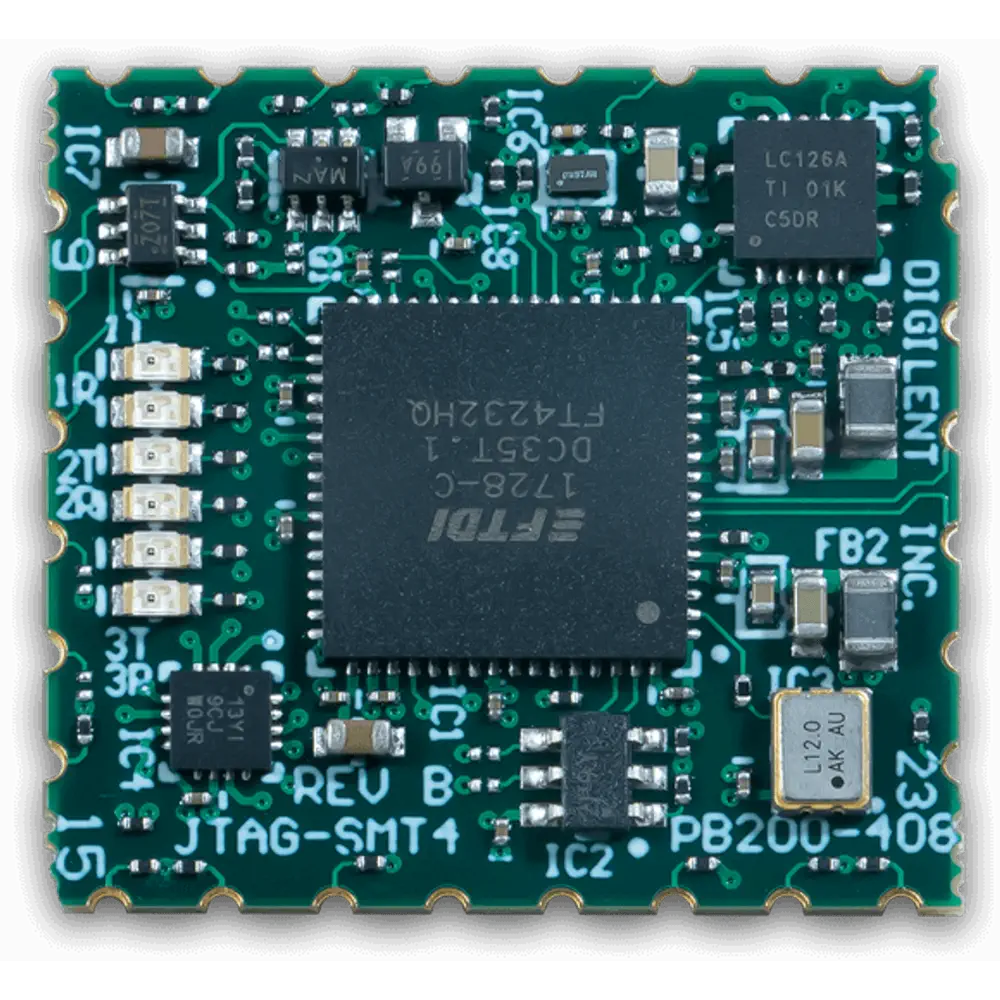

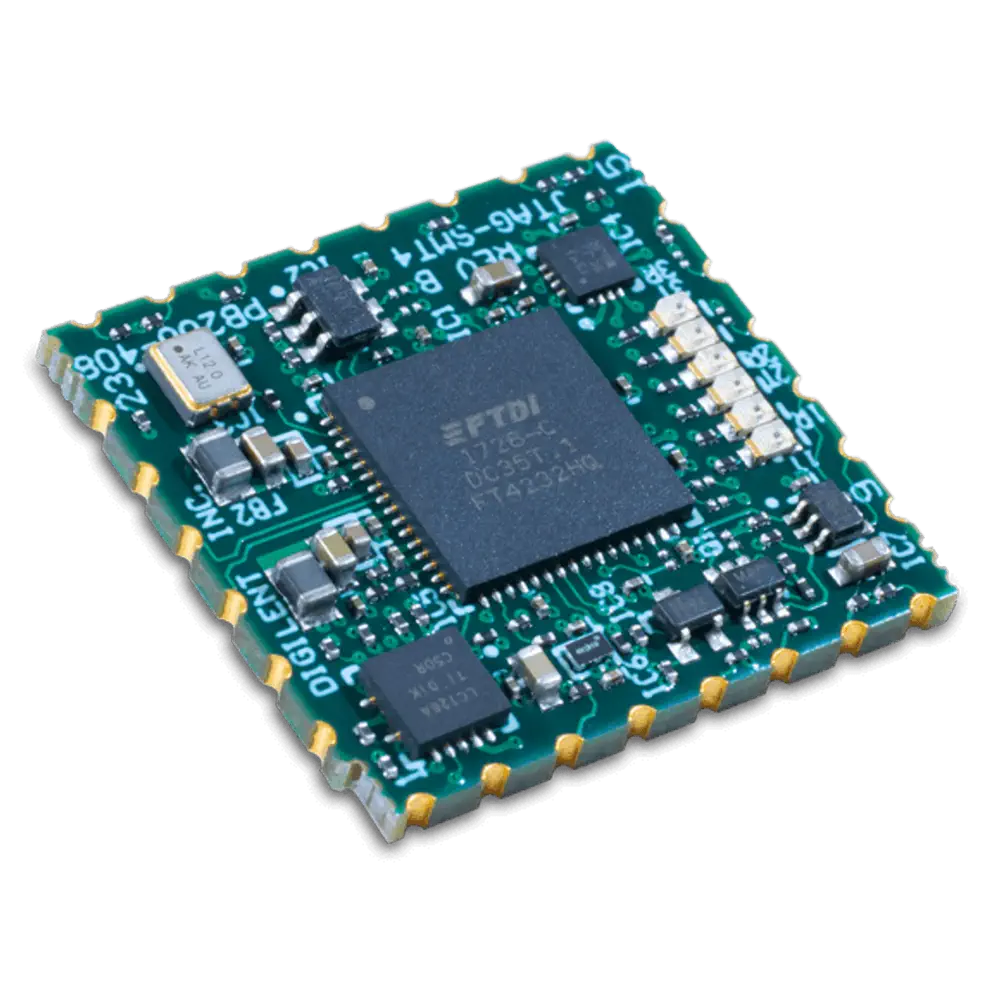

The Digilent JTAG-SMT4 Surface-Mount Programming Module is a compact and comprehensive solution designed for programming and debugging Xilinx FPGAs. It integrates seamlessly with Xilinx Tools, requiring Vivado or Vitis 2020.1 or newer versions. The module features three independent UART channels, each capable of supporting bus speeds up to 12Mbaud, and includes transmit and receive LEDs for each channel.

Equipped with a high-speed USB 2.0 port, the module can drive the JTAG bus at speeds up to 30Mbit/sec, with user-adjustable frequency settings. It includes open drain buffers that enable software-based resets of Xilinx’s Zynq® platform through the PS_SRST_B and PS_POR_B pins. The quad-channel USB controller allows for simultaneous access to both JTAG and UART interfaces.

The module's onboard buffers support JTAG signal operations at voltages ranging from 1.8V to 3.3V. Its small form-factor design allows it to be directly mounted onto target boards, with USB D+ and D- signals routed to pads, facilitating flexible placement of the USB connector on the host PCB. Additionally, the VBUS_DETECT pin helps reduce current consumption when the module is not connected to a PC. The module is CE certified and fully compliant with EU RoHS and REACH directives.

  • 1x Digilent JTAG-SMT4 Surface-Mount Programming Module
  • Comprehensive JTAG programming and debugging solution for Xilinx FPGAs with UART side channel
  • Compatible with Xilinx Tools (requires Vivado/Vitis 2020.1 or newer)
  • Features three independent UART channels, each supporting bus speeds up to 12 Mbaud
  • Each UART channel includes transmit and receive LEDs
  • High-Speed USB 2.0 port capable of driving JTAG bus up to 30 Mbit/sec (user-settable frequency)
  • Open drain buffers enable software-based resets of Xilinx’s Zynq® platform via PS_SRST_B and PS_POR_B pins
  • Quad channel USB controller provides simultaneous access to JTAG and UART interfaces
  • Onboard buffers support JTAG signal operation at voltages from 1.8V to 3.3V
  • Surface-mount module designed for direct loading onto target boards
  • USB D+ and D- signals routed to pads, allowing flexible placement of USB connector on the host PCB
  • VBUS_DETECT pin reduces current consumption when the module is not connected to a PC
  • CE certified and fully compliant with EU RoHS and REACH directives
