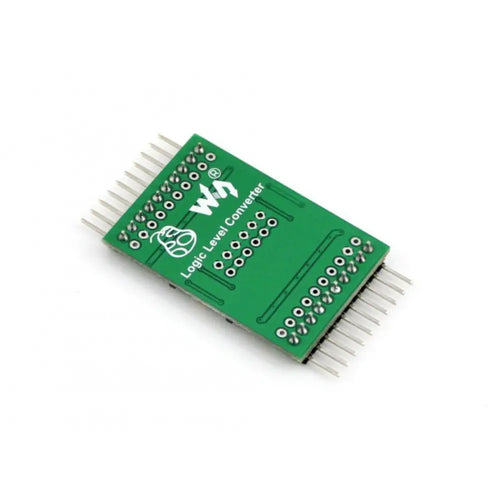

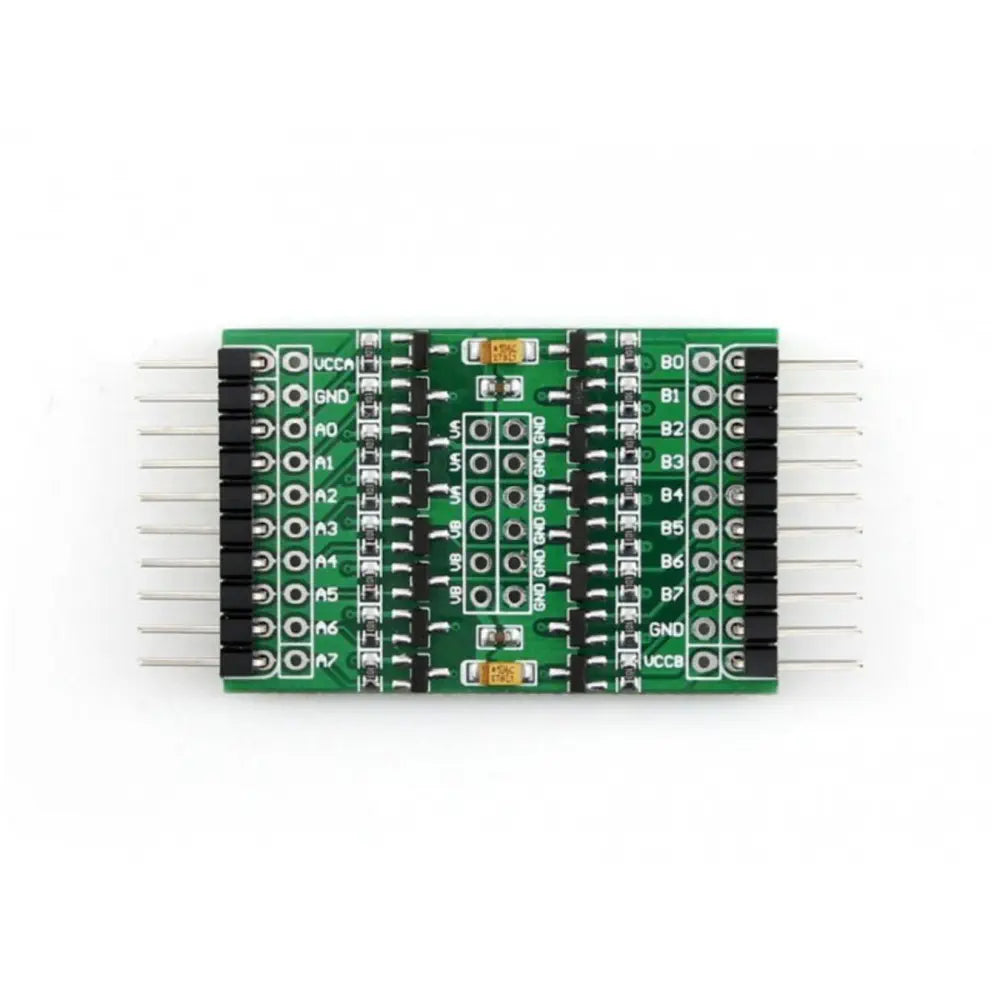

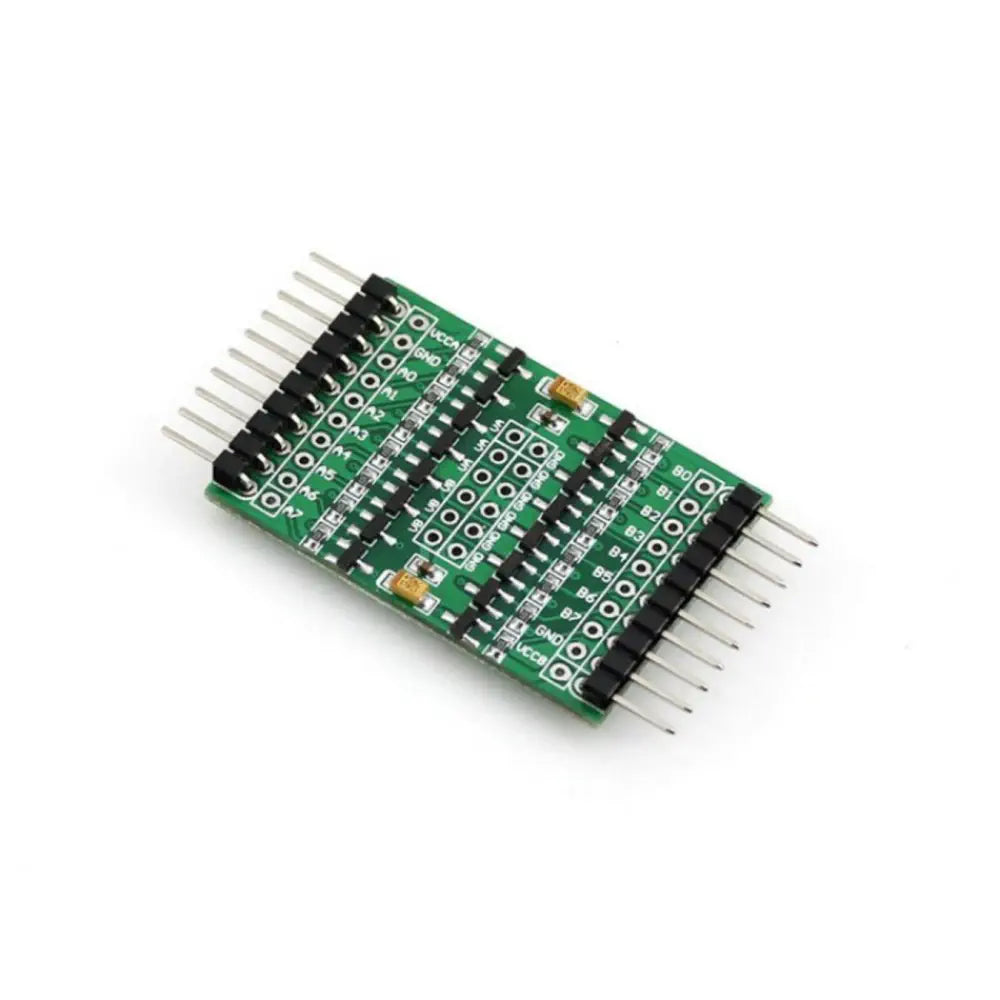

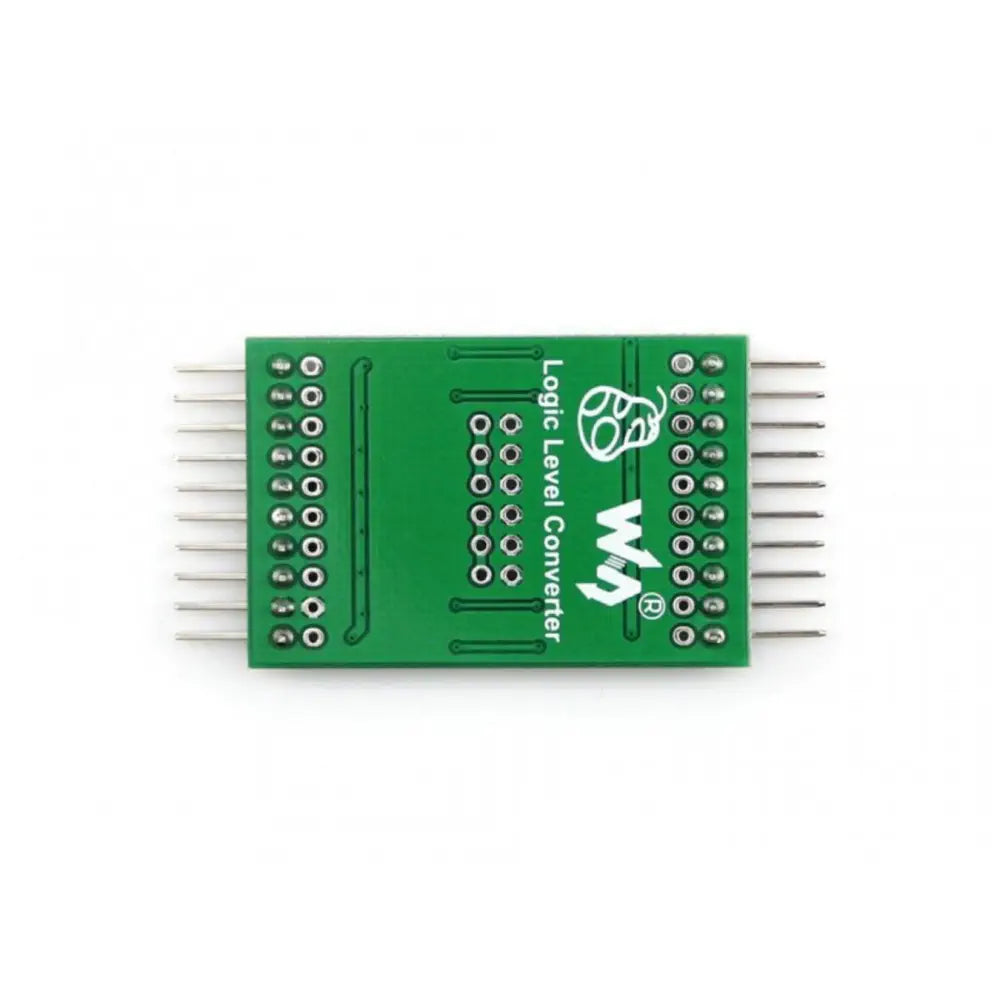

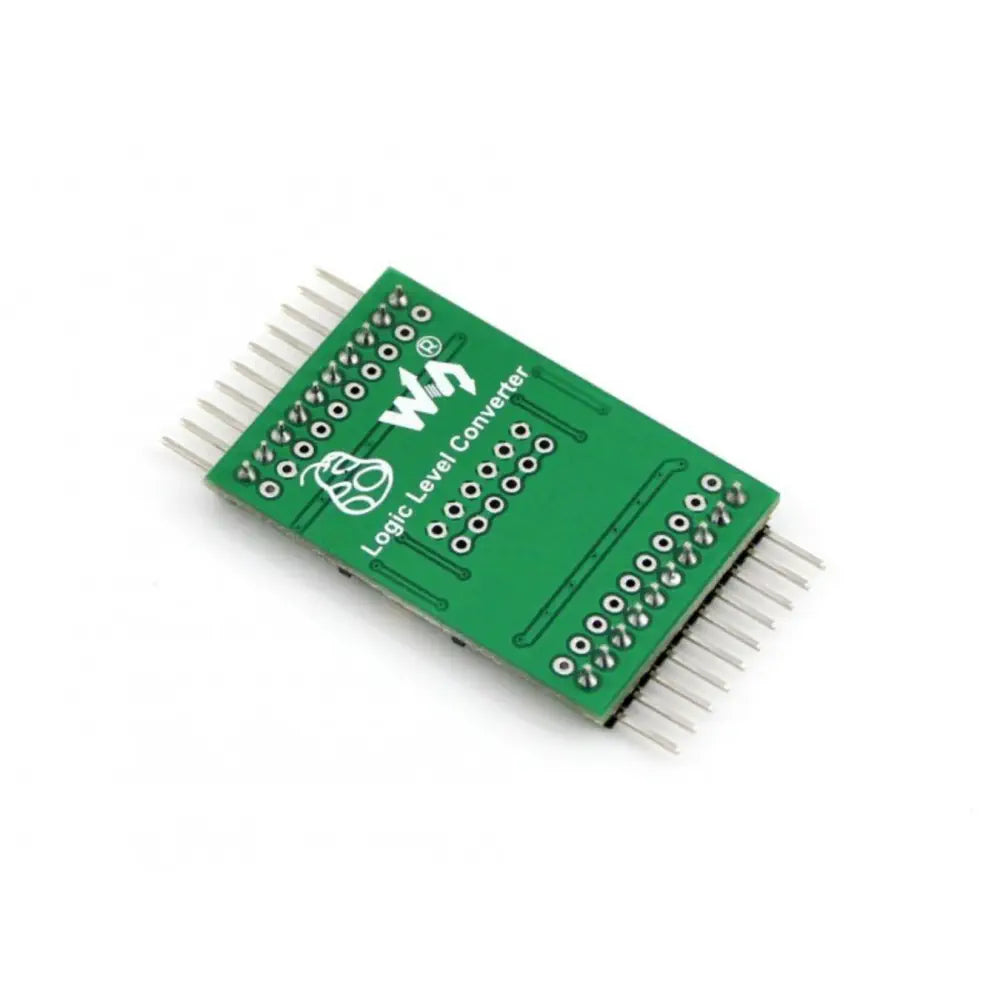

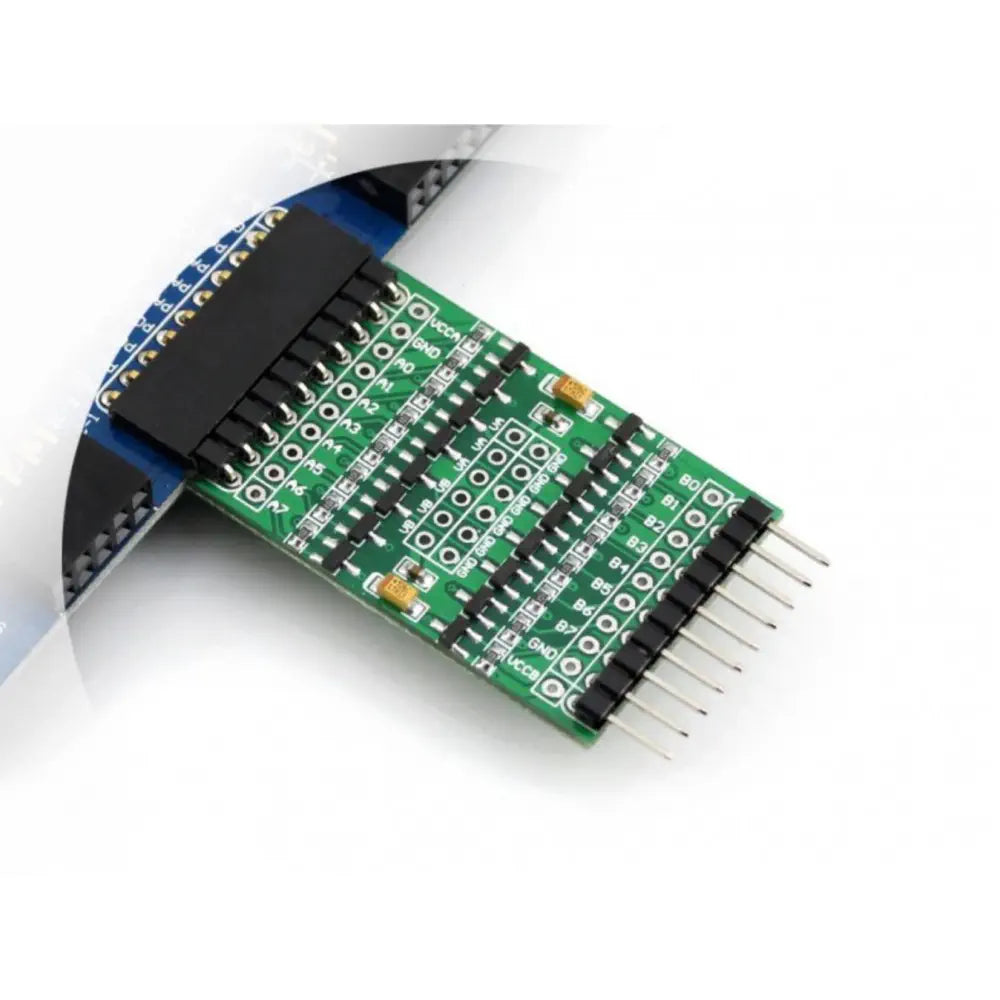

8 Channels Logic Converter

WaveshareSKU: RB-Wav-34
Manufacturer #: 9127

Price  :
Sale price $2.99

Shipping calculated at checkout

On Demand See due date

This is an On Demand item and is not normally stocked. We will order it for you along with our next purchase from the supplier.

* Delays depend on the order frequency from each supplier and the approximate arrival date is indicated in the due date. Returns are not accepted on On Demand and Clearance Items except when they are found defective, in which case the product may be repaired or replaced at RobotShop's discretion.

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • 8 channels bidirectional voltage translation between different logic level
  • Translate between Ax and Bx automatically
  • 4 pairs of power supply interfaces, supports more situations
  • Use tantalum capacitors for power filter, provides more stability
  • Voltage level: 1.8V-6V
  • Logic Level Converter × 1
  • 31.6mm x 25.4mm
  • Weight: 0.004 kg

ZIP File

How to Use

In the case of translating between 3.3V and 5V system:

  • VCCA/VA connects to 3.3V power supply
  • VCCB/VB connects to 5V power supply
  • GND connects to power negative pole respectively, the two power supply should be common-grounded with each other
  • When Ax has TTL 3.3V input, Bx will get TTL 5V output
  • When Bx has TTL 5V input, Ax will get TTL 3.3V output
  • NO direction control required

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
G
Gilbert
Another ESP32 to Arduino voltage convertor

When I need more channels this is what I use. As usual Robot Shop provided prompt delivery and kept me updated of the delivery.

J
John
Best connector Logic Converter I’ve found and the price is right.

this is great! I can now get my Arduino Due to talk to 5 volt systems without worrying about burning out the Due
