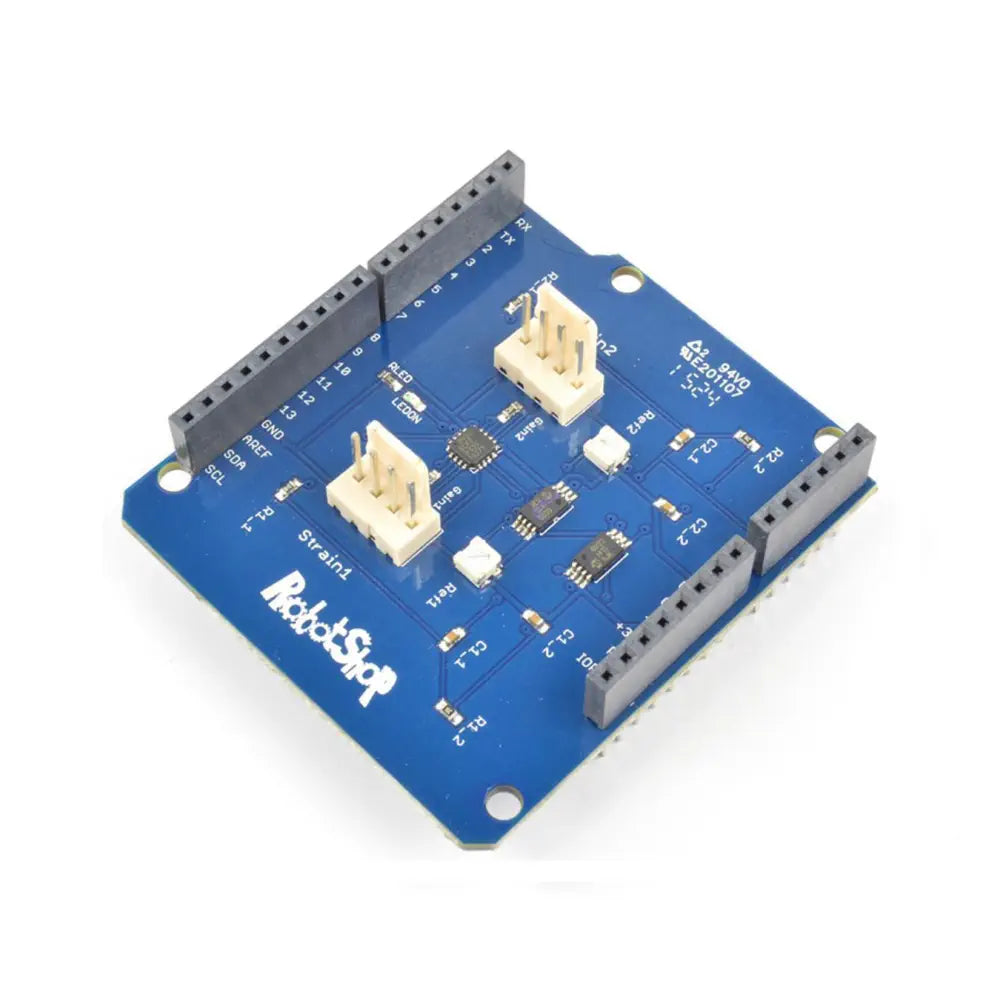

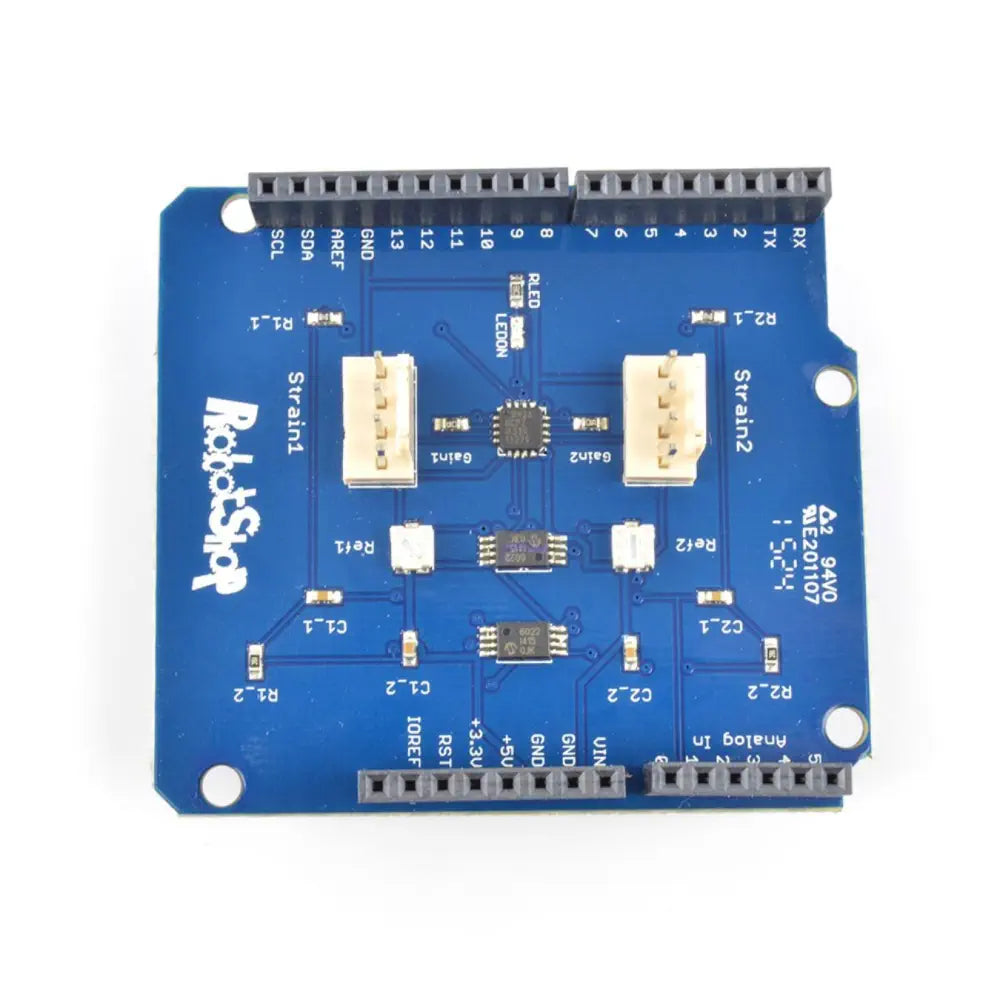

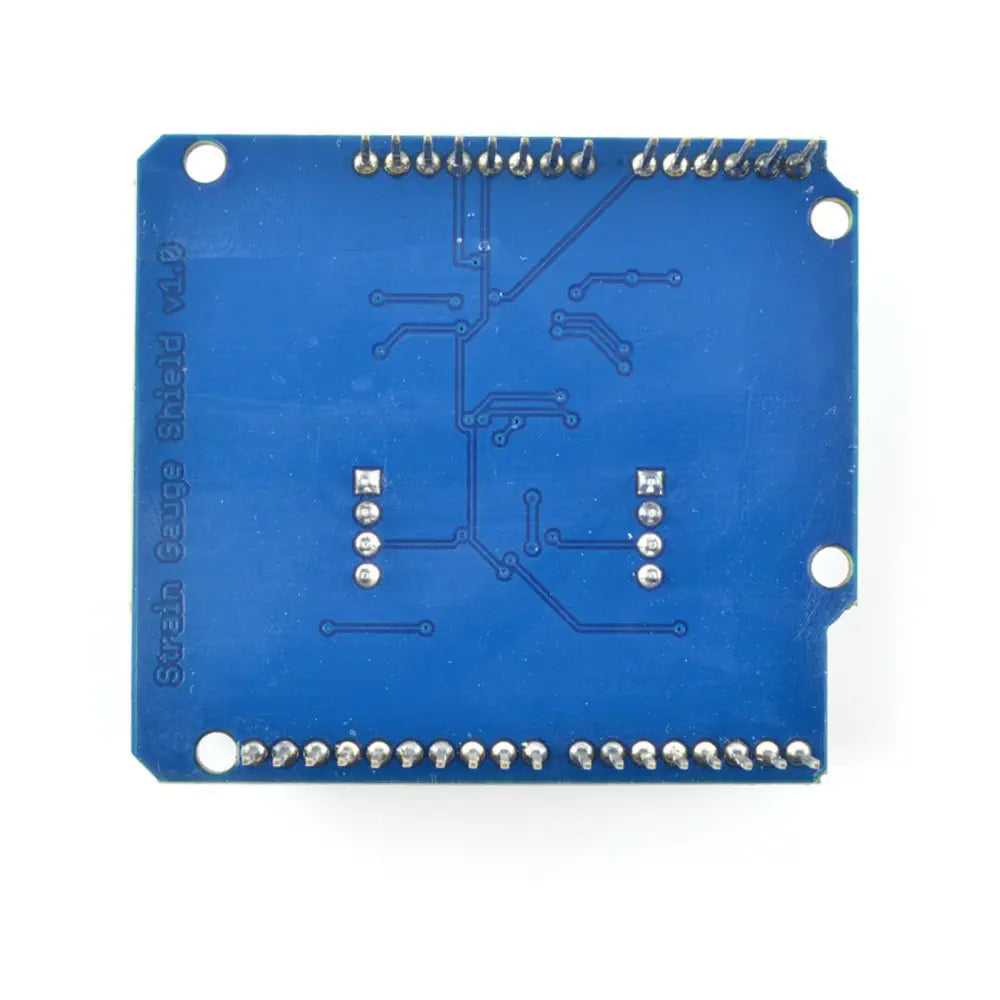

Load Cell / Wheatstone Amplifier Shield (2ch)

RobotShopSKU: RBC-Onl-38
Manufacturer #: ABE-01

Price  :
Sale price $48.16

Shipping calculated at checkout

Returns are not accepted on Special Order and Clearance Items except when they are found defective, in which case the product may be repaired or replaced at RobotShop's discretion.

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Compatible with a wide variety of load cells
  • Based on AD8426 amplifier
  • Contains 2 channels / inputs
  • Voltage reference adjustment on board
  • Works perfectly on Arduino UNO/Duemilanove boards

The Load Cell / Wheatstone Amplifier Shield (2ch) is intended for precise amplification of measurements specifically for bridge amplifiers, medical instrumentation and industrial process control. Instrumentation signals (for example from Wheatstone bridge sensors) are often in the order of mV (millivolts) or less, and need to be amplified for processing via ADC. This shield will allow you to interface two bridge sensors like load cells directly on your Arduino board. Fully assembled.

Strain Gauge / Load Cell / Wheatstone Amplifier Shield (2ch)

  • 1x Load Cell / Wheatstone Amplifier Shield (2ch)

Size

  • 53 x 60 mm
  • Gain adjustment with external resistor
  • Gain range: 1 to 1000
  • Two 4 pin Molex connectors with 0.1 inch spacing
  • Voltage reference adjustment on board

Customer Reviews

Based on 13 reviews
85%
(11)
15%
(2)
0%
(0)
0%
(0)
0%
(0)
C
ControlFreak
Just what I needed

This is just what I needed. The flexibility of tuning the gain with resistors is very useful. It is a better board as compare to HX711 in my opinion. Totally recommended.

T
TD
Successful test! Yet to try with a load cell!

Nice product!! :)

d
dario
good

it's work fine,good

S
SOSQ vzw
perfect

perfect

S
Sergiu
Polyvalent and easy to use

Great Arduino Shield to interface a wheatstone load cell. Easy to use and polyvalent. Speeded up our testing process a lot.
