DFRobot Terminal Block Board for FireBeetle 2 ESP32-E IoT Microcontroller

DFRobotSKU: RB-Dfr-1324
Manufacturer #: DFR0923

Price  :
Sale price $19.90

Shipping calculated at checkout

Stock  :
Only 1 unit left

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • DFRobot Terminal Block Board
  • Designed for FireBeetle 2 ESP32-e IoT Microcontroller
  • Features stable, reliable connections with terminal block wiring
  • Includes LED status indicators for each terminal block
  • Offers an external voltage input of 7-24 V and a GDI port

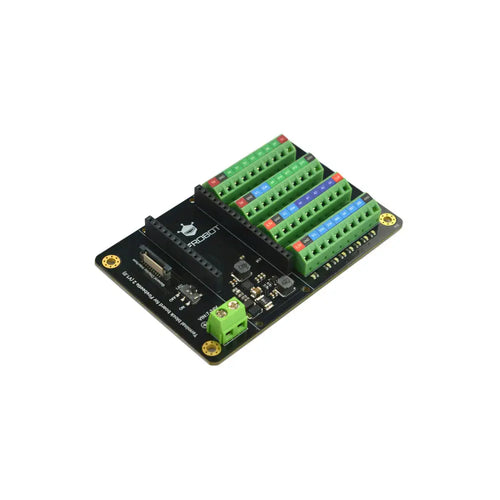

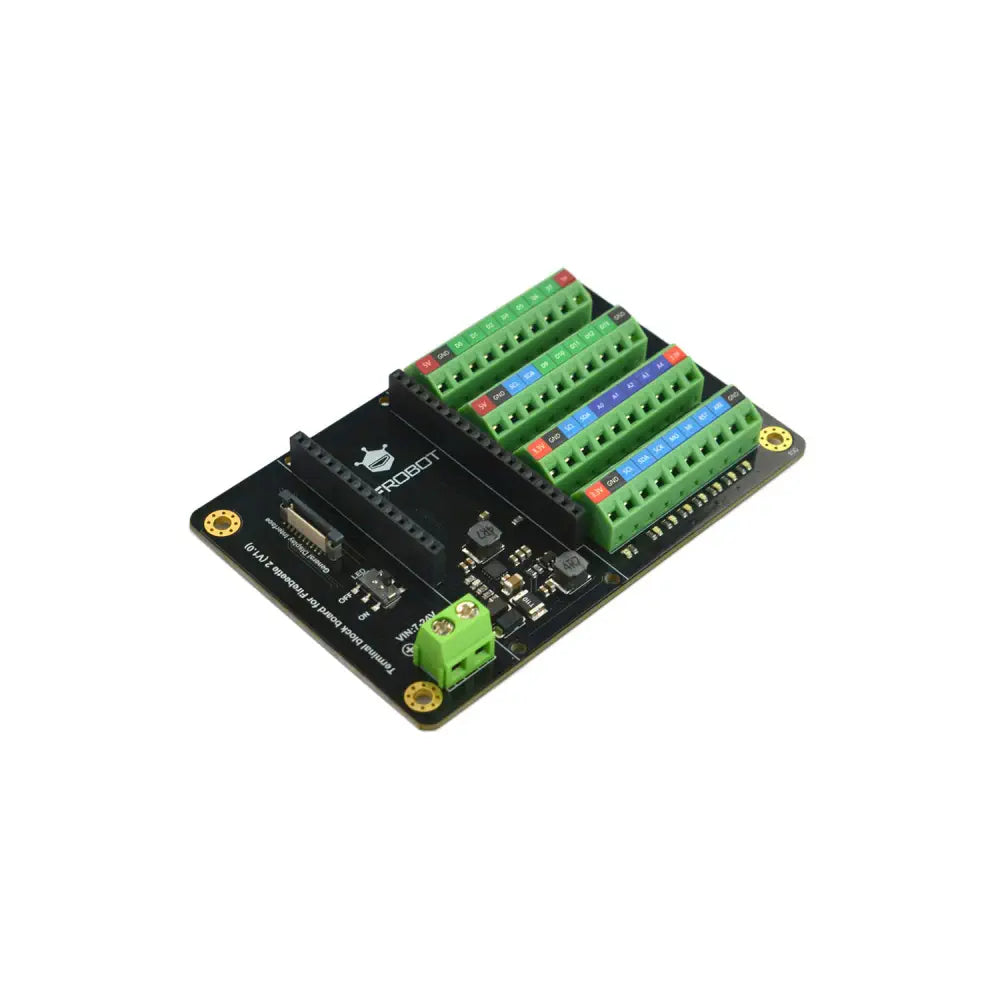

The Terminal Block Board for FireBeetle 2 ESP32-e IoT Microcontroller is an expansion shield specifically designed to be compatible with the FireBeetle 2 ESP32-E IoT Microcontroller, supporting both Wi-Fi and Bluetooth. However, it is important to note that it is not compatible with the FireBeetle 2 Board ESP32-S3 Microcontroller and Firebeetle 2 M0 Development Board.

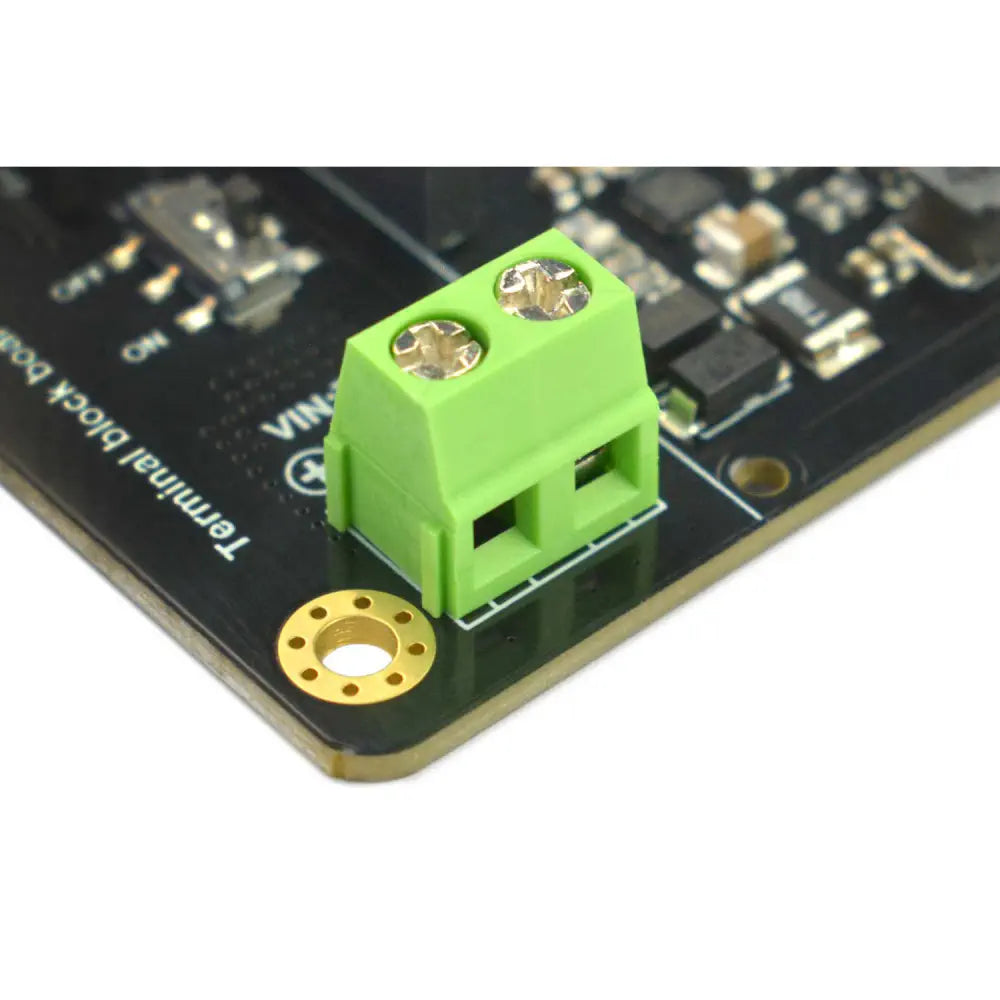

This expansion shield is ideally suited for those who prefer to use terminal blocks for wiring their projects. It is equipped with an additional 7-24V external voltage input and a GDI port. The use of terminal blocks ensures that wires are secured, resulting in more stable and reliable connections.

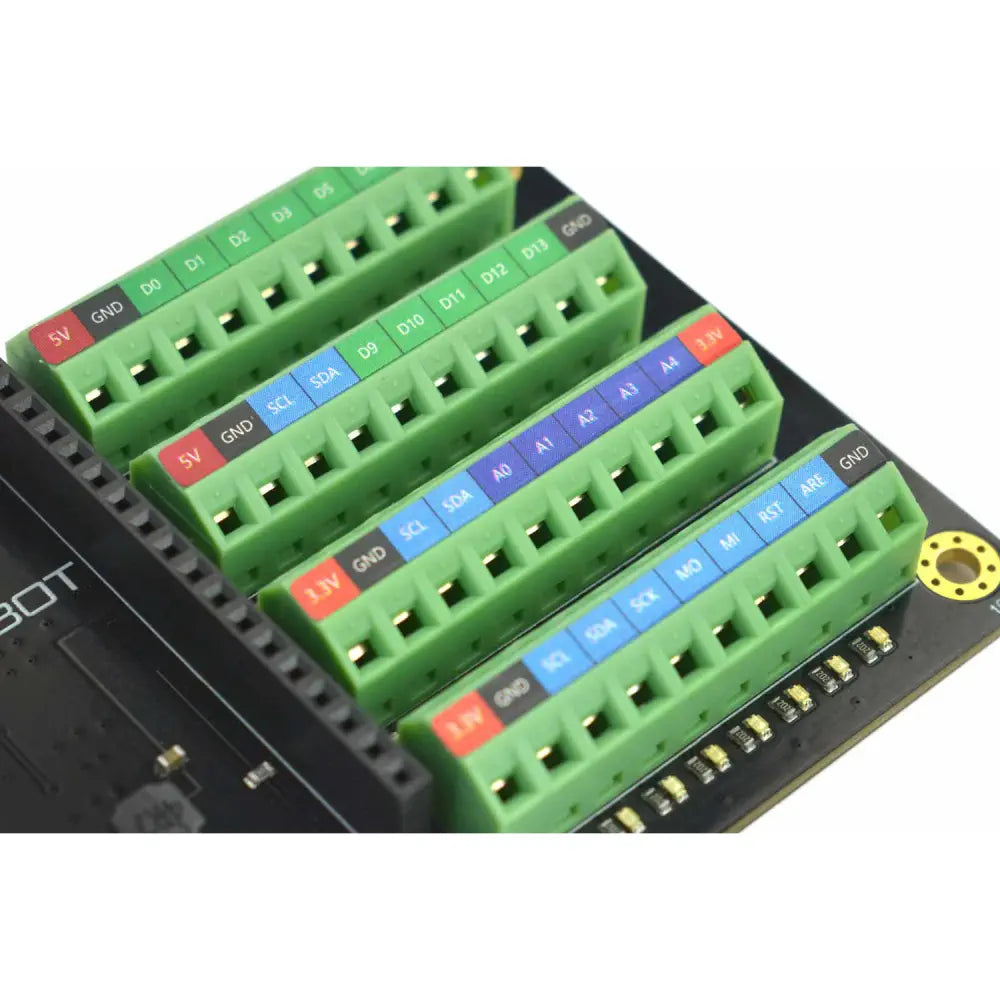

Each terminal block, with the exception of GND, is fitted with an LED for status indication. A switch is incorporated into the design of the board, allowing users to turn off the LED when it is not needed. The terminal block board is characterized by its stable and reliable connections, with all pins of the mainboard broken out.

The board also features an external Voltage Input of 7-24V, a GDI for connecting the display, a clear colorful silkscreen, a terminal block status indicator, and a terminal block status indicator switch. This makes it suitable for use in applications such as Smart Soil conditioners and Multiple Relays Projects.

Please note that this expansion shield is not compatible with the FireBeetle 2 Board ESP32-S3 Microcontroller and Firebeetle 2 M0 Development Board.

  • 1x Terminal Block Board for FireBeetle 2 ESP32-E IoT Microcontroller

  • 61 x 93.5 mm / 2.40 x 3.68 inch
  • External Voltage Input: 7-24 V
  • Screen Port: GDI
  • 5V Port x3
  • 3.3V Port x3
  • GND Port x6
  • Digital Port x12
  • Analog Port x5
  • I2C x3
  • SPI x1
  • Port Indicator x34
  • Port Indicator Color: blue, red
  • Default ON Port Indicator: 5V, 3.3V, D0, D1, D5, D6, A4, RST
