Sherline Thread-Cutting Attachment

Sherline Machining ToolsSKU: RB-She-47
Manufacturer #: 3100

Price  :
Sale price $150.83

Shipping calculated at checkout

Stock  :
Only 2 units left

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Unique and versatile thread-cutting attachment for lathe
  • Contains 15 metal gears, mounting brackets, engagement mechanism and a 4" handwheel
  • Gear ratio chart and detailed instructions are included
  • Weight: 3 lb.a

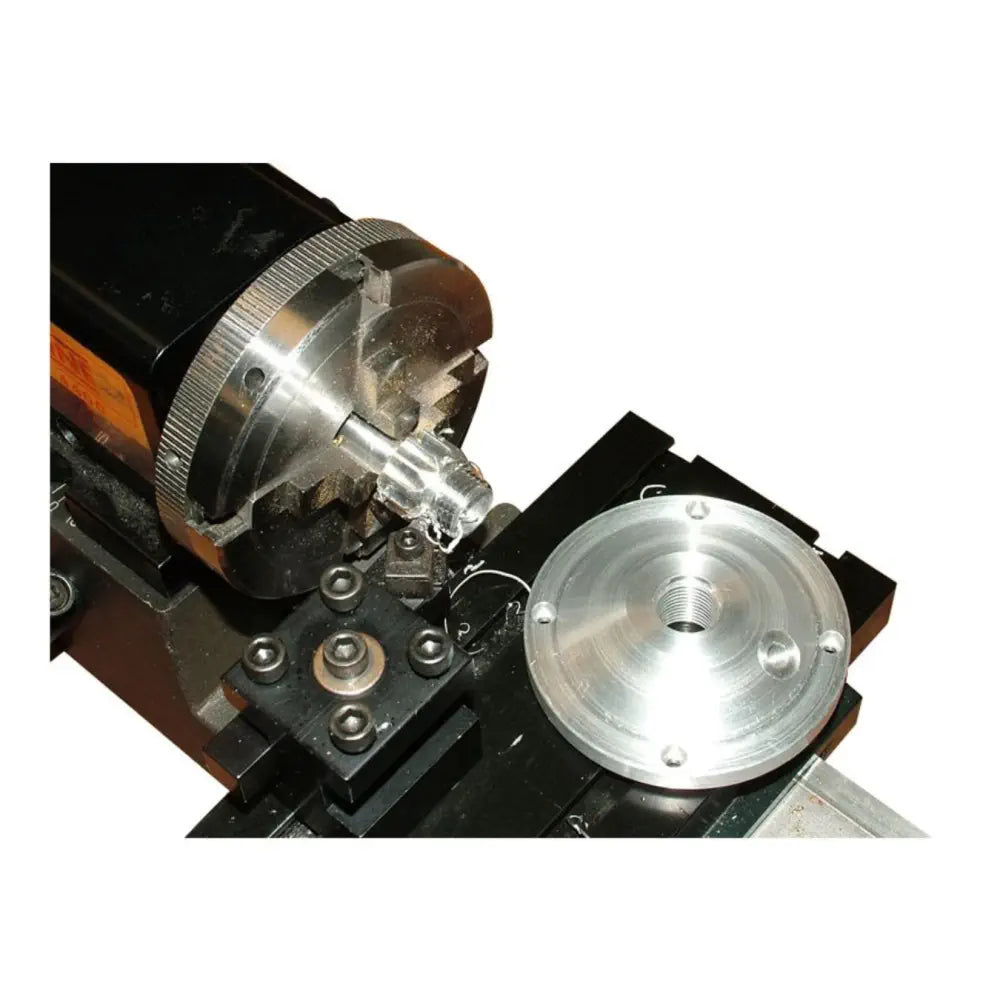

This low cost Sherline Thread-Cutting Attachment enables you to machine 36 different unified thread pitches (5 to 80 threads per inch) and 28 different metric thread pitches (from .25 to 2.0mm). It allows you to cut them as either left-hand or right-hand threads. The lathe tool can be ground to cut any of the various thread forms, and any of these various pitches or thread forms can be cut on any pitch diameter you desire.

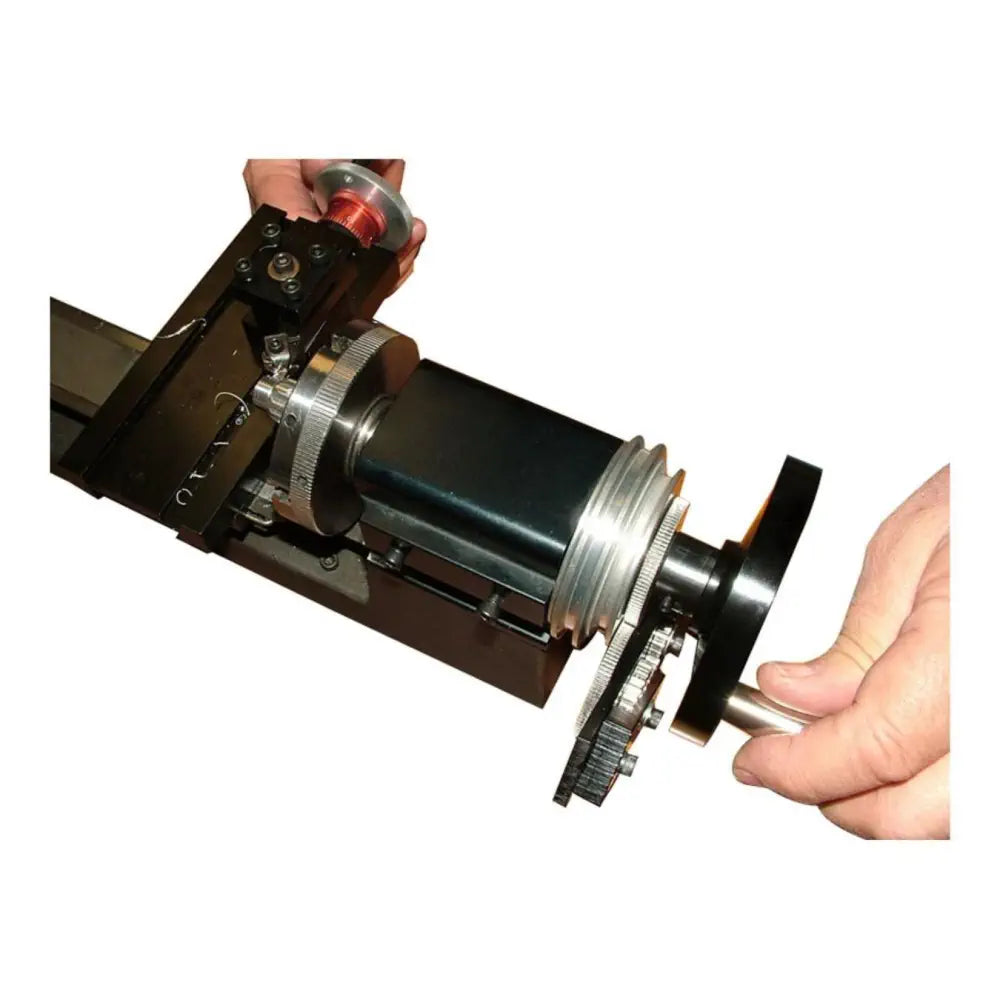

Threads are generated on the Sherline lathe by gearing the spindle to the leadscrew. As the spindle is rotated with the handwheel, the tool will advance an amount determined by the ratio of the gears. When the tool has completed its movement, you simply stop cranking, back up the tool and turn the spindle in the opposite direction until the tool is past its starting point. Then reset the tool and you're ready for the next pass. It is simple, by using a 127-tooth gear (supplied), true metric threads can be cut on an inch (model 4000, 4500, or 4400) or true inch threads on a metric (model 4100, 4530, or 4410) lathe.

Sherline Thread-Cutting Attachment

Note: Manufacturer has done a special short run of gears with tooth counts in between the ones included in the set. If you need special gears to do a thread count different from the ones mentioned in the table, these gears might help you achieve it. The gears have tooth counts of 21, 23, 25, 27, 29, 31, 33, 35, 37 and 39 teeth.

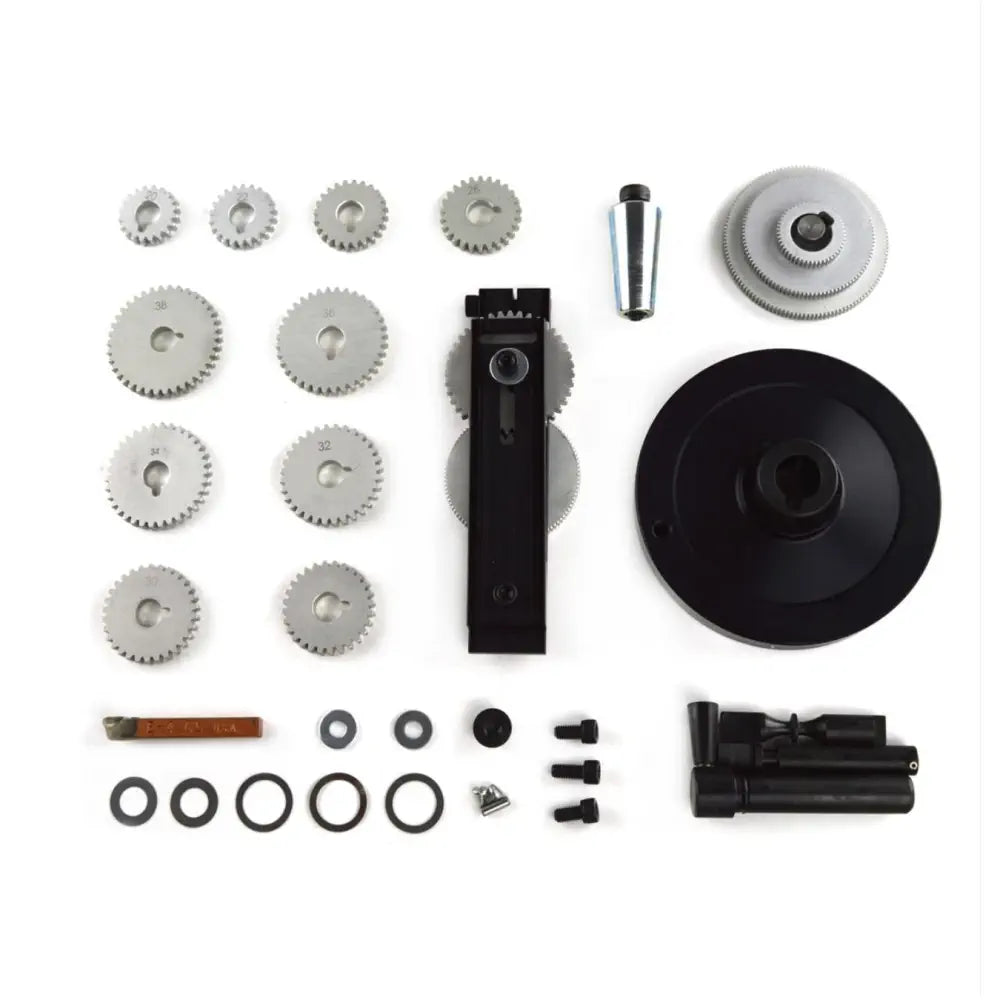

  • 15 accurately hobbed metal gears
  • Mounting brackets
  • Engagement mechanism
  • 4" (102mm) handwheel

PDF File

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
David
Threading at its best !

Diverse array of threading options. Installation took a little longer than expected but there is a detailed installation instructions, plus a YouTube video that will guide you through it. Threaded bolt turned out perfect ... a welcome addition for the lathe. Quick shipping by RobotShop.
