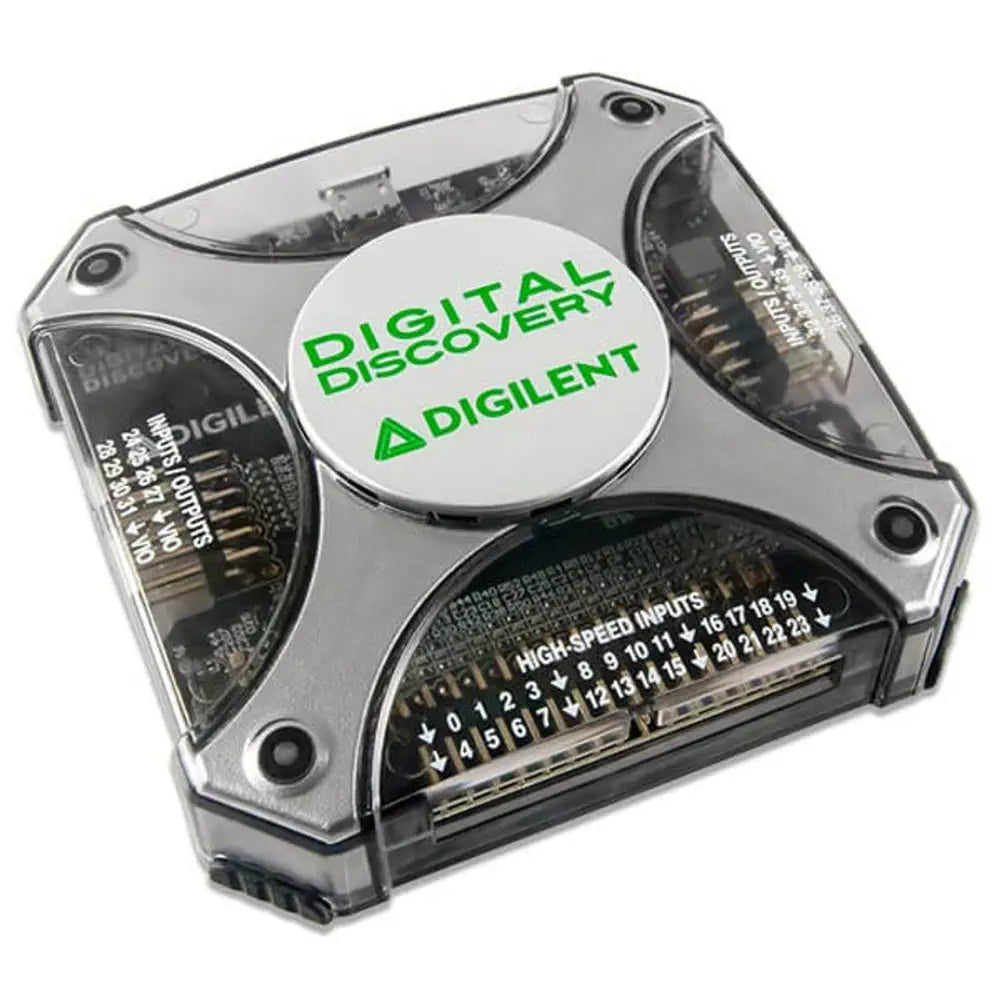

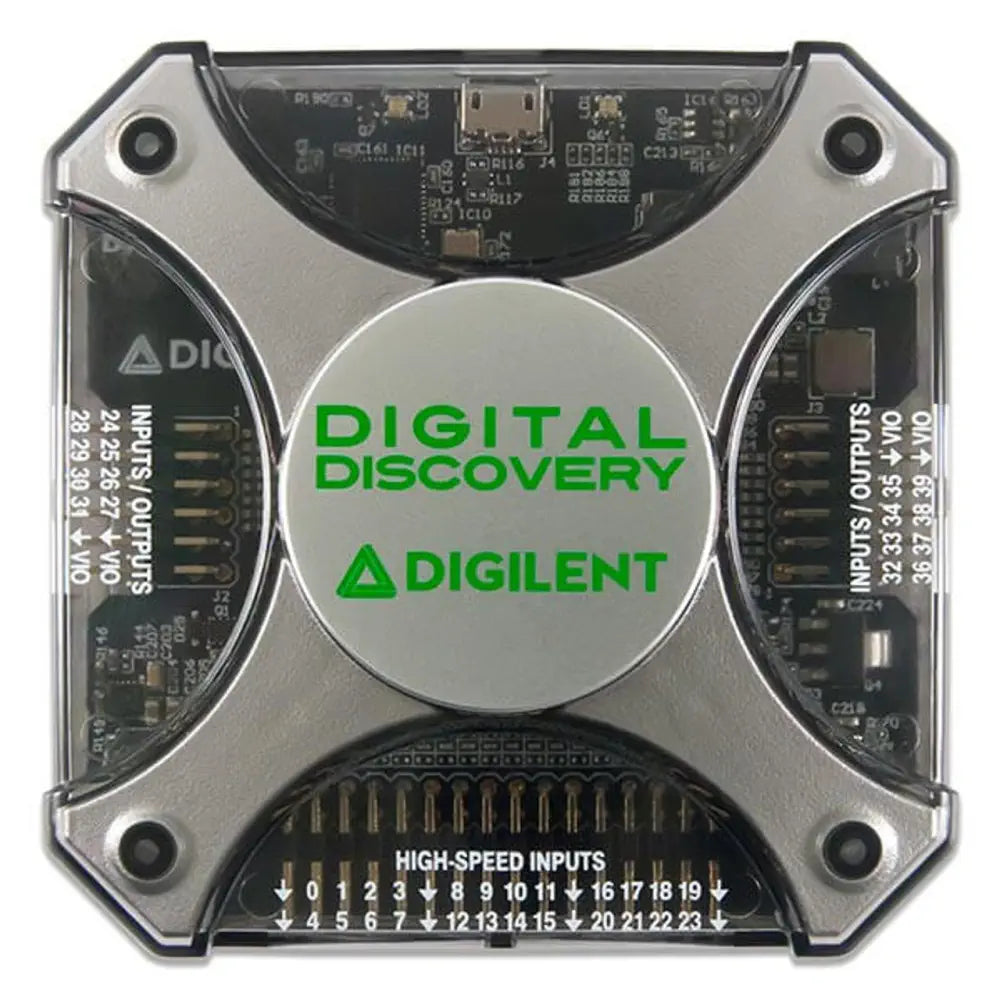

Digilent Digital Discovery: Portable USB Logic Analyzer & Pattern Generator (w/ Probes)

DigilentSKU: RB-Dig-317
Manufacturer #: 240-127

Price  :
Sale price $279.00

Shipping calculated at checkout

Stock  :

Re-stocking soon See due date

Notify me when this product is in stock

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Digilent Digital Discovery: Portable USB Logic Analyzer & Pattern Generator (w/ Probes)
  • Offers multifunctionality: logic analyzer, protocol analyzer, and pattern generator
  • Optimizes channels, speed, and portability for embedded development
  • Reconfigurable on the fly, adapting to various design requirements
  • Compact design ensures easy storage without compromising advanced features

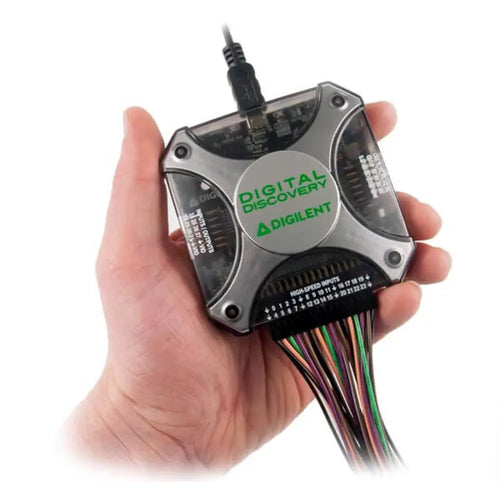

The Digilent Digital Discovery: Portable USB Logic Analyzer & Pattern Generator (w/ Probes) is a multifunctional instrument that amalgamates the functionalities of a logic analyzer, protocol analyzer, and pattern generator.

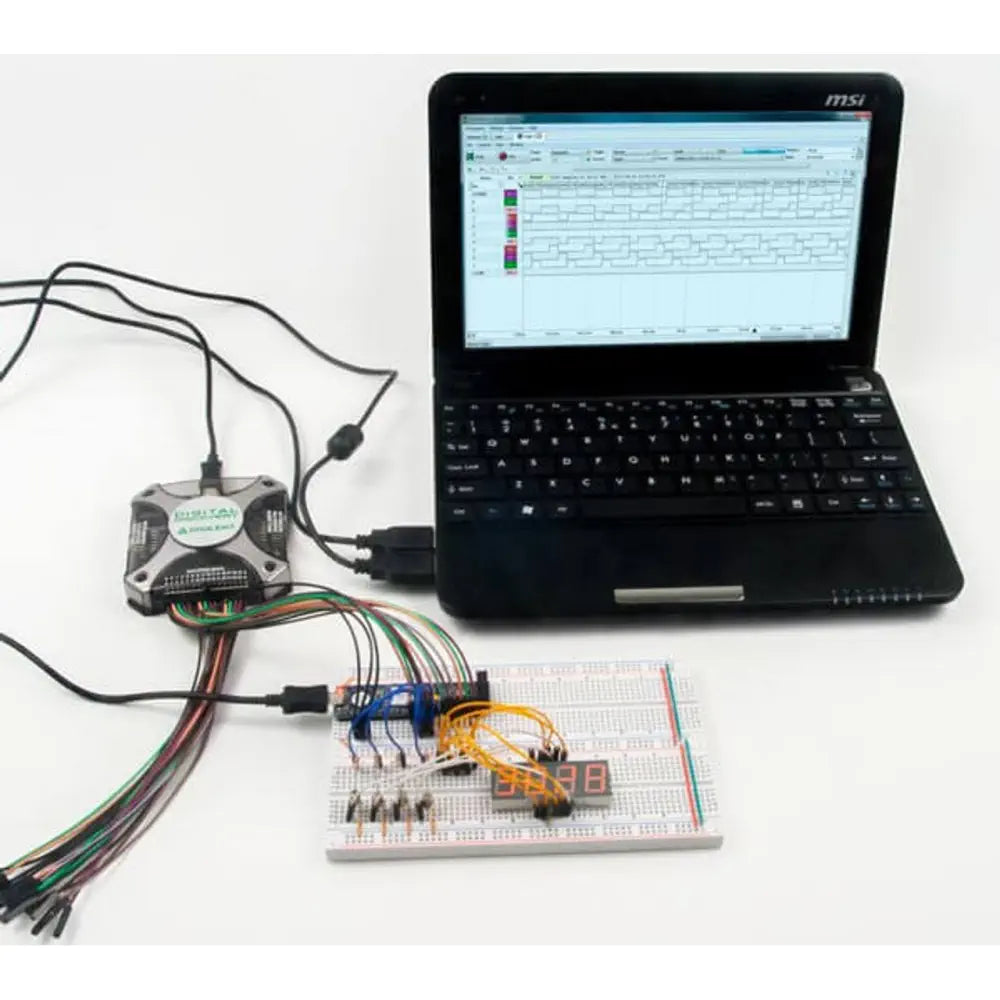

This device has been meticulously designed to serve as the ultimate companion for embedded development, boasting compatibility with a broad spectrum of digital systems. The Digital Discovery is engineered to optimize channels, speed, and portability, making it an indispensable tool for debugging, visualizing, and simulating digital signals in most embedded projects. Its compact form factor ensures easy storage while not compromising on its suite of advanced features.

  • 1x Digital Discovery

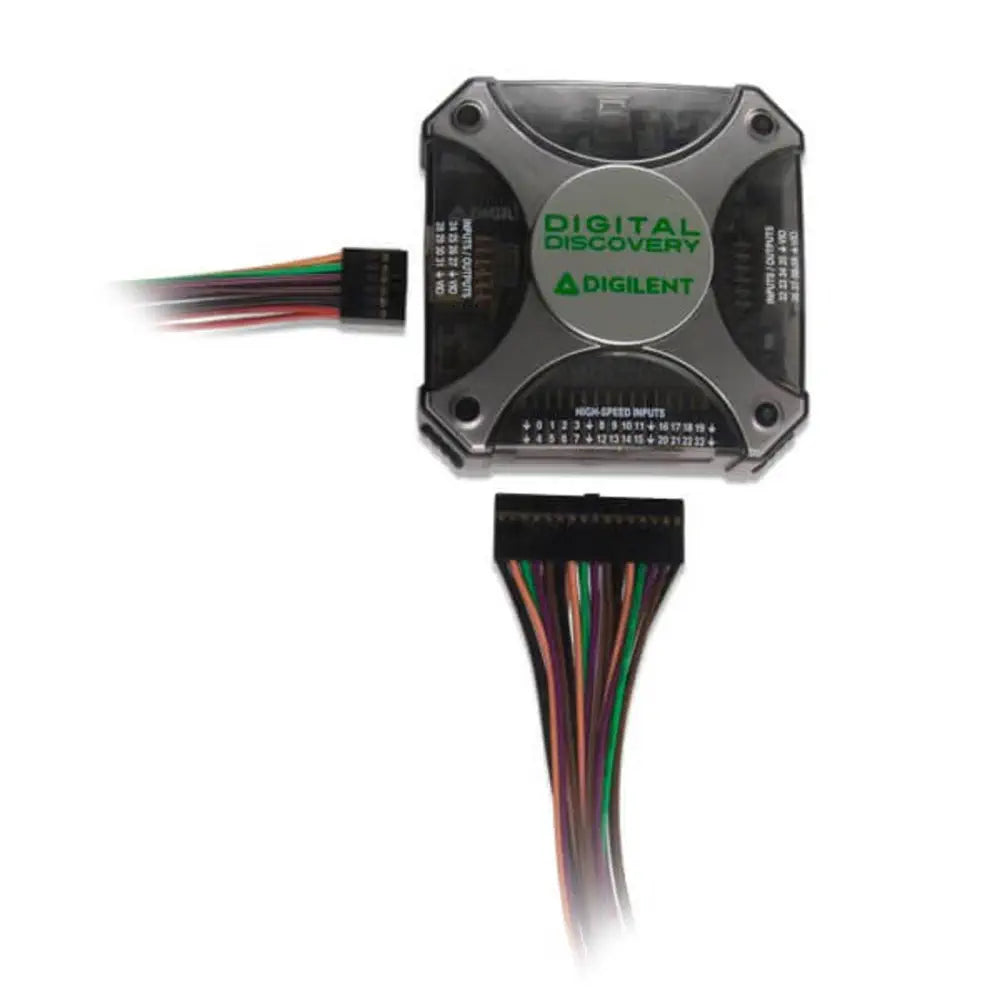

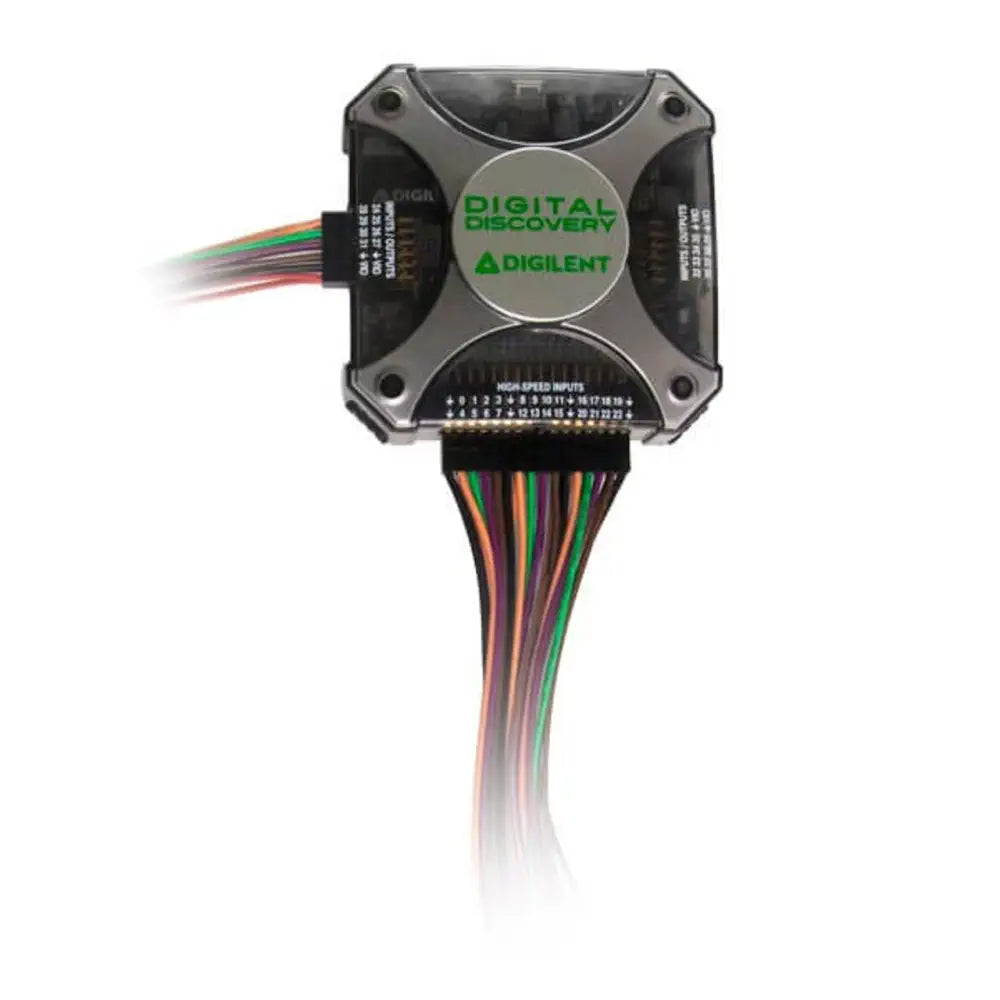

  • 1x 2x6 Flywire Assembly
  • 1x 2x16 Flywire Assembly
  • 1x USB A to Micro-B cable
  • 1x High-Speed Adapter
  • 16x Logic Probes

Digital Logic Analyzer

  • Channels: 24
  • Sample Rate: 800 MS/s (with the High-Speed Adapter)
  • Bandwidth: 100 MHz+
  • Voltage Range: 1.2V to 3.3V (5V compatible when used as inputs)
  • Buffer: 2 GBit DDR3 acquisition
  • Bus Analyzers: SPI, I²C, UART, CAN, I2S, Parallel and Custom

Digital Pattern Generator

  • Channels: 16
  • Sample Rate: 100 MS/s
  • Bandwidth: 50 MHz
  • Voltage Range: 1.2V to 3.3V
  • Bus Output: Counters and Custom

Multi-purpose Digital I/O

  • Channels: 16
  • Sample Rate: 100 MS/s (50 MHz max output frequency)
  • Voltage Range: 1.2V to 3.3V (5V compatible when used as inputs)
  • Buffer: Algorithmic pattern generator (no buffers used)

Protocol Analyzer

  • Channels: 16 - 32
  • Voltage Range: 1.2V to 3.3V (inputs 5V compatible)
  • Bus Analyzers: UART: send and receive | SPI: read and write | I2C: read and write | CAN: rx and tx

Programmable Power Supplies

  • Voltage Range: 1.2V to 3.3V
  • Current Limit: 100 mA max available in each of the two 2×6 MTE connectors
